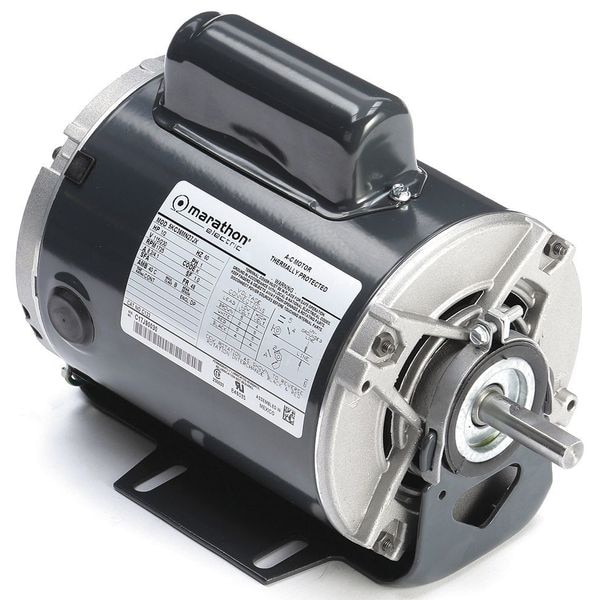

Capacitor-Start General Purpose Motor, 1/2 hp HP, 115/230V AC Voltage, 48 Frame

  • Mfr # 5KC36MN27X

  • Zoro # G6192882

product price:  $375.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Cradle Base
HP
1/2 hp
RPM Range
1,701-1,800
Voltage
115/230V AC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
5KC36MN27X
Zoro #
G6192882
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
1 1/2 in
Length Less Shaft
8 1/2 in
Shaft Dia.
1/2 in
Overall Length
10 in
Frame Size
48
Shaft Diameter
1/2 in

Details

Item
General Purpose Motor
Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Cradle Base
HP
1/2 hp
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
48
Motor Thermal Protection
Auto
Motor Service Factor
1
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Application
General Purpose
Nameplate RPM
1,725 RPM
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Flat
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start
Standards
CSA Certified, UL Listed
Full Load Amps
8.2/4.1 A
Ins. Class
B
Frame Material
Steel
Max. Ambient Temp.
40 Degrees C
Motor Bearings
Ball
Duty
Continuous
Phase
Single
Nominal Efficiency
62 %
Hz
60 Hz
RPM Group
1701-1800
Usable @ 200V
Not Usable at 200V
Weight
19 lb
Usable @ 208V
Not Usable at 208V
Duty Cycle
Continuous
Ambient Temperature
40 Degrees C
Product Type
General Purpose Motor
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C
Mounting Position
All Angle
Efficiency Rating
Standard Efficiency (IE1)
Insulation Class
B
Nameplate Service Factor @ 60 Hz
1
Motor Enclosure Type
Open Drip Proof
Full Load Current @ 60 Hz
8.2/4.1 A
Application
General Purpose
Number of Speeds
1
Bearing Type
Ball
Shaft Design
Flat

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 8.2/4.1 A, 48 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base
