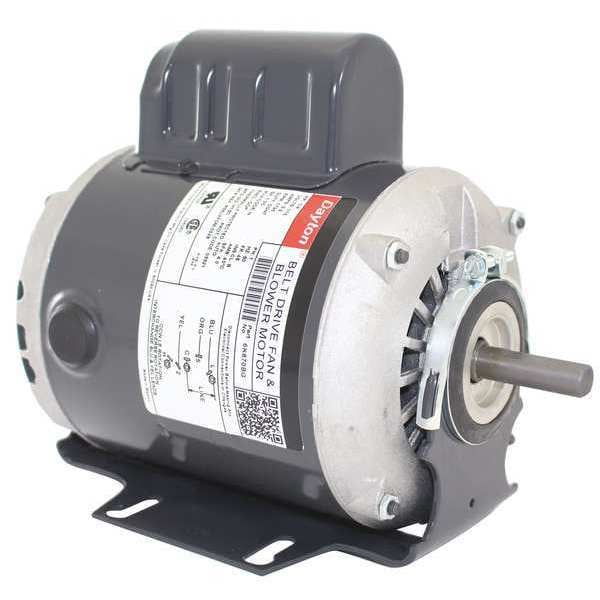

Split-Phase Start/Capacitor-Run Belt Drive Motor, 1/4 HP, 48 Frame, 115V AC Voltage

  • Mfr # 6K870

  • Zoro # G1052572

product price:
$
296.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Split-Phase Start/Capacitor-Run
Motor Enclosure Design
Open Dripproof
HP
1/4
No. of Speeds
1
RPM Range
1,701-1,800
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6K870
Zoro #
G1052572
UPC #
190735366608
Country of Origin
Multiple

Dimensions

Shaft Dia.
1/2 in
Overall Length
9 13/32 in
Resilient Ring Dia.
2 1/4 in
Body Dia.
5 5/8 in
Length Less Shaft
7 29/32 in
Shaft Length
1 1/2 in
Shaft Diameter
1/2 in
Frame Size
48
Body Diameter
5.6 in
Resilient Ring Diameter
2 1/4 in
Wire Rope Length
9 13/32 in
Length
9 13/32 in

Details

Item
Belt Drive Motor
Motor Design
Split-Phase Start/Capacitor-Run
Motor Enclosure Design
Open Dripproof
HP
1/4
No. of Speeds
1
RPM Range
1,701-1,800
Nameplate RPM
1,725
Voltage
115V AC
Frame
48
Motor Mounting Type
Cradle Base
Motor Thermal Protection
Auto
Motor Service Factor
1.35
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Phase
Single
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Frame Material
Steel
Ins. Class
B
Ring to Ring Center
7 5/16 in
Standards
CSA Certified (258501), UL Recognized (E37403)
Motor Mounting Position
All Angle
Full Load Amps
3.2 A
Motor Bearings
Ball
Motor Frame Material
Rolled Steel
Duty
Continuous
Motor Shaft Rotation
CW/CCW
Hz
60 Hz
Motor Shaft Design
Flat
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Nominal Efficiency
64.9 %
Footnotes
77
Max. Ambient Temp.
104 Degrees F
Duty Cycle
Continuous
Number of Speeds
1
Application
Fan/Blower
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Open Drip Proof
Mounting Position
All Angle
Bearing Type
Ball
Insulation Class
B
Nameplate Service Factor @ 60 Hz
1.35
Drive Type
Belt Drive
Shaft Design
Flat
Product Type
Fan and Blower Motor
Frequency
60 Hz
Full Load Current @ 60 Hz
3.2 A

Description

Fan and Blower Motor, Single Phase, Motor Design Split-Phase-Start/Capacitor-Run, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, 3.2 A Full Load Amps, 48 Frame, 60 Hz Hz, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel, Motor Mounting Position All Angle
