Leeson

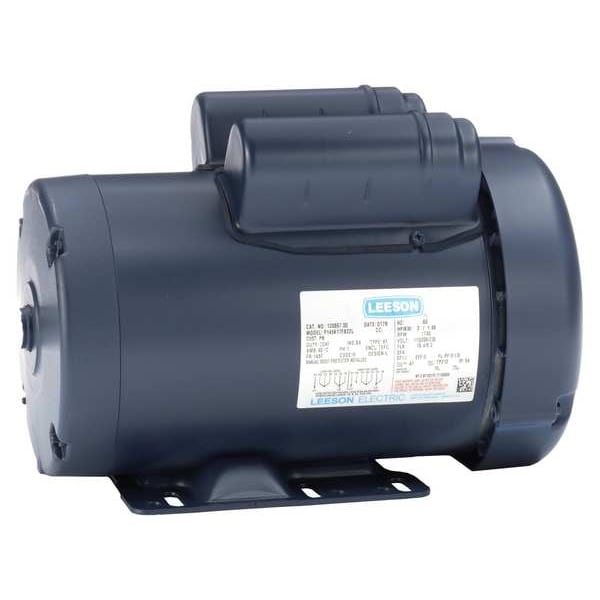

Capacitor-Start General Purpose Motor, 2 HP, 145T Frame, 115/208-230V AC Voltage

product price: $782.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Enclosure Design Totally Enclosed Fan-Cooled
  • Motor Mounting Type Rigid Base
  • HP 2
  • RPM Range 1,701-1,800
  • Voltage 115/208-230V AC
See all product information

Product Information

Dimensions

Bolt Circle Dia. 5 5/8 in
Manufacturers Warranty Length 18 mo
Shaft Dia. 7/8 in
Body Dia. 7.7 in
Lead Length 6 in
Overall Length 13 15/16 in
Length Less Shaft 11 5/8 in
Shaft Length 2 1/4 in
Height 8 3/8 in

Details

Item General Purpose Motor
Motor Enclosure Design Totally Enclosed Fan-Cooled
Motor Mounting Type Rigid Base
HP 2
RPM Range 1,701-1,800
Voltage 115/208-230V AC
Frame 145T
Motor Thermal Protection Manual
Motor Service Factor 1
Voltage Compatibility 115/208-230V AC
Motor Application General Application
Motor Design Capacitor-Start
Nameplate RPM 1,740
Motor Shaft Rotation CW/CCW
Motor Mounting Position Horizontal
Motor Frame Material Rolled Steel
Motor Shaft Design Keyed
Standards CSA, UL Recognized
Includes Key
NEMA Design L
Part Winding Start Capable No
Weight 45 lb
Number of Wires 7
Regreasable Bearings Permanently Lubricated Bearings
Conduit Box Location Exterior
Nominal Efficiency 82 %
Full Load Amps 18.4/9.2
Conduit Box Position F1
Max. Ambient Temp. 104 Degrees F
Finish Enamel
Inverter Rated No
Duty Cycle Continuous
Bearing Protection Double Shield
Ins. Class B
Usable @ 208V Yes
Starter Required No
Shaft Material 1144 Stressproof Carbon Steel
No. of Speeds 1
Inverter Rating No
Hz 60 Hz
Motor Bearings Ball
Phase Single
Usable @ 200V No

Description

General Purpose Motor, Bearing Protection Double Shield, Body Dia. 7.7 in, Bolt Circle Dia. 5 5/8 in, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Finish Enamel, Frame 145T, Hz 60 Hz, Full Load Amps 18.4/9.2, Height 8 3/8 in, HP 2, Includes Key, Ins. Class B, Inverter Rated No, Inverter Rating No, Lead Length 6 in, Length Less Shaft 11 5/8 in, Manufacturers Warranty Length 18 mo, Max. Ambient Temp. 104 Degrees F, Motor Application General Application
