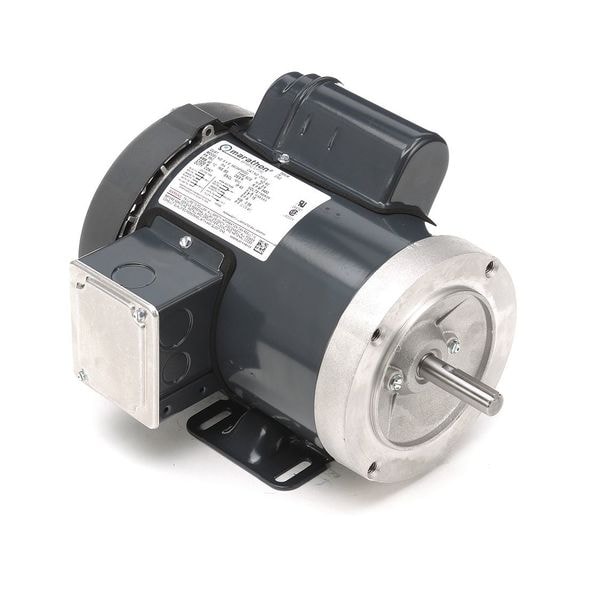

Capacitor-Start General Purpose Motor, 3/4 hp HP, 115/208-230V AC Voltage, 56C Frame

  • Mfr # 056C34F5302

  • Zoro # G2006072

product price:  $364.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face, Rigid Base
HP
3/4 hp
RPM Range
3,001-3,600
Voltage
115/208-230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
056C34F5302
Zoro #
G2006072
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
10 7/16 in
Shaft Length
2 1/16 in
Shaft Dia.
5/8 in
Overall Length
12 3/8 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
5/8 in
Frame Size
56C

Details

Item
General Purpose Motor
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face, Rigid Base
HP
3/4 hp
RPM Range
3,001-3,600
Voltage
115/208-230V AC
Frame
56C
Motor Thermal Protection
None
Motor Service Factor
1.15
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Application
General Purpose
Nameplate RPM
3,450 RPM
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start
Standards
CSA, UL Recognized
Ins. Class
B
Motor Bearings
Ball
Hz
60 Hz
Inverter Rated
Not Inverter Rated
Full Load Amps
10.6/5.3 A
Includes
Capacitor
RPM Group
3001-3600
Frame Material
Steel
Nominal Efficiency
66 %
Duty
Continuous
Phase
Single
Max. Ambient Temp.
40 Degrees C
Weight
28 lb
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Usable @ 200V
Not Usable at 200V
Capacitor Required
Yes
Inverter Rating
Not Inverter Rated
Shaft Design
Keyed
Application
General Purpose
Motor Enclosure Type
Totally Enclosed Fan Cooled
Efficiency Rating
Standard Efficiency (IE1)
Manufacturers Warranty
1 yr
Nameplate Service Factor @ 60 Hz
1.15
Full Load Current @ 60 Hz
10.6/5.3 A
Insulation Class
B
Number of Speeds
1
Bearing Type
Ball
Product Type
General Purpose Motor
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Mounting Position
Horizontal

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 10.6/5.3 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
