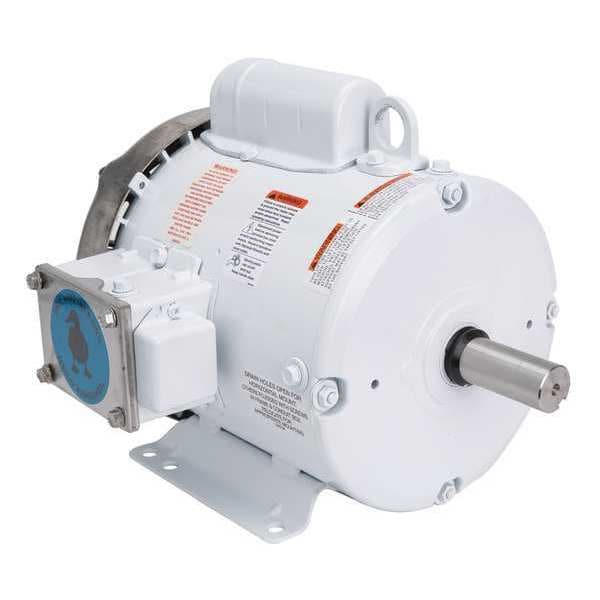

Capacitor-Start Washdown Motor, 2 hp HP, 115/208-230V AC Voltage, 182T Frame
Mfr # 131571.00
Zoro # G4448048
product price: $1,333.99
/ea
Free Shipping & Returns
Key Features
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
2 hp
RPM Range
1,701-1,800
Voltage
115/208-230V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
131571.00
Zoro #
G4448048
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Dia.
1 1/8 in
Length Less Shaft
10 5/8 in
Shaft Length
2 3/4 in
Overall Length
13 7/16 in
Body Dia.
8.38 in
Manufacturers Warranty Length
1 yr
Description
Washdown Motor, Single Phase, Motor Design Capacitor-Start, 2 hp HP, Nameplate RPM 1,740 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 12.6 A, 182T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design N, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
