Shop MARATHON

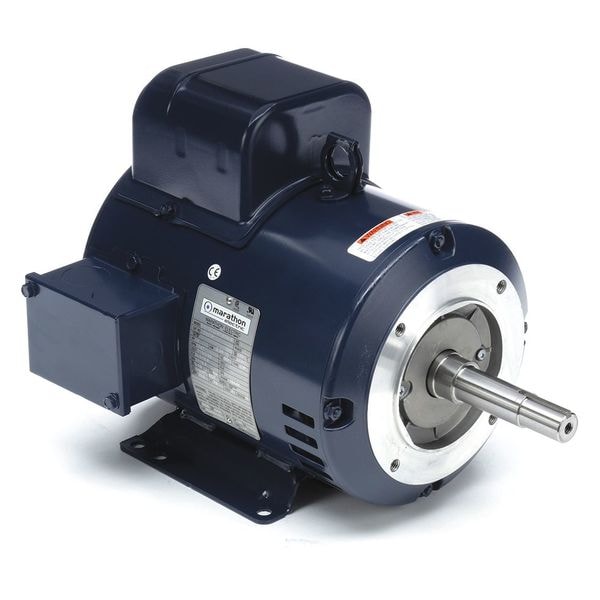

Close-Coupled Pump Motor3 HP, 1747 rpm

  • Mfr # 184TCDW7047

  • Zoro # G5747901

product price:  $814.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
HP
3
RPM Range
1,701-1,800
Nameplate RPM
1,750
Voltage
115/230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
184TCDW7047
Zoro #
G5747901
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
7/8 in
Length Less Shaft
11 9/16 in
Overall Length
15 13/16 in
Shaft Length
4 1/4 in
Bolt Circle Dia.
5 7/8 in
Height
11 3/16 in
Shaft Diameter
7/8 in
Frame Size
184JM
Bolt Circle Diameter
5 7/8 in
Wire Rope Length
15 13/16 in

Details

Item
Close-Coupled Pump Motor
Motor Design
Capacitor-Start
HP
3
RPM Range
1,701-1,800
Nameplate RPM
1,750
Voltage
115/230V AC
Frame
184JM
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Full Load Amps
33.5/16.8
Nominal Efficiency
75.5 %
Motor Thermal Protection
None
Standards
CE, CSA, IP 22, NEMA JM, UL
Phase
Single
Duty
Continuous
Motor Sub Application
Close-Coupled Pump
Frame Material
Steel
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Frame Material
Steel
Motor Efficiency Group
Standard Efficient
Motor Enclosure Design
Open Dripproof
Inverter Rated
Not Inverter Rated
Motor Shaft Rotation
CW/CCW
Max. Ambient Temp.
40 Degrees C
Motor Application
Pump
Ins. Class
F
Hz
60 Hz
Motor Shaft Design
JM Threaded
Motor Bearings
Ball
Usable @ 200V
Not Usable at 200V
No. of Speeds
1
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Motor Mounting Position
Horizontal
Weight
78 lb
Conduit Box Position
F1
Shaft Type
JM Threaded
Motor Enclosure Type
Open Drip Proof
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
33.5/16.8 A
Bearing Type
Ball
Shaft Design
Threaded
Shaft Thread Type
JM
Application
Pump
Frequency
60 Hz
Efficiency Rating
Standard Efficiency (IE1)
Mounting Position
Horizontal
Nameplate Service Factor @ 60 Hz
1.15
Number of Speeds
1
Product Type
Pump Motor
Insulation Class
F

Description

Close-Coupled Pump Motor, Bolt Circle Dia. 5 7/8 in, Conduit Box Position F1, Duty Cycle Continuous, Frame 184JM, Hz 60 Hz, Full Load Amps 33.5/16.8, Height 11 3/16 in, HP 3, Ins. Class F, Inverter Rated Not Inverter Rated, Length Less Shaft 11 9/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
