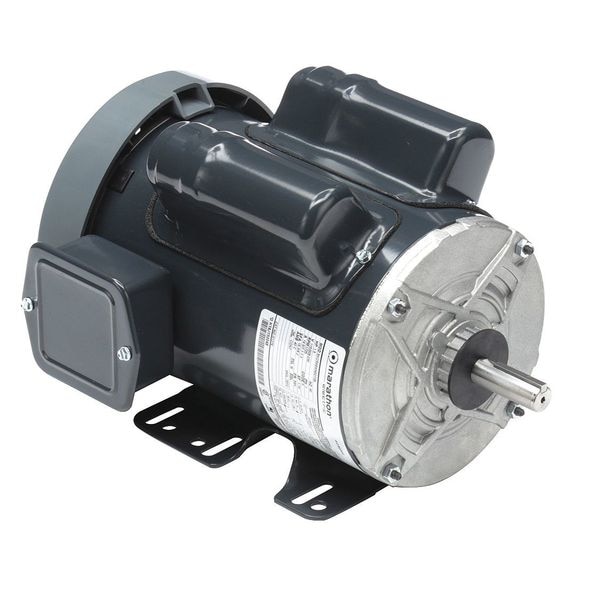

Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/208-230V AC Voltage, 56H Frame

  • Mfr # 5KCR48WN0273

  • Zoro # G5616021

product price:
$
557.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
1 1/2 hp
RPM Range
1,701-1,800
Voltage
115/208-230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5KCR48WN0273
Zoro #
G5616021
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
11 15/16 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Shaft Dia.
5/8 in
Overall Length
13 13/16 in
Frame Size
56H
Shaft Diameter
5/8 in
Wire Rope Length
13 13/16 in
Length
13 13/16 in

Details

Item
General Purpose Motor
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
1 1/2 hp
RPM Range
1,701-1,800
Voltage
115/208-230V AC
Frame
56H
Motor Thermal Protection
None
Motor Service Factor
1.15
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Application
General Purpose
Nameplate RPM
1,725 RPM
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start/Run
Standards
CSA Certified, UL Listed
RPM Group
1701-1800
Duty
Continuous
Inverter Rated
Not Inverter Rated
Motor Bearings
Ball
Nominal Efficiency
73.6 %
Full Load Amps
14.5/7.3-7.1 A
Phase
Single
Hz
60 Hz
Ins. Class
B
Frame Material
Steel
Max. Ambient Temp.
40 Degrees C
Weight
44 lb
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Usable at 208V
Duty Cycle
Continuous
Capacitor Required
No
Inverter Rating
Not Inverter Rated
Product Type
General Purpose Motor
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
B
Nameplate Service Factor @ 60 Hz
1.15
Motor Enclosure Type
Totally Enclosed Fan Cooled
Application
General Purpose
Bearing Type
Ball
Efficiency Rating
Standard Efficiency (IE1)
Number of Speeds
1
Full Load Current @ 60 Hz
14.5/7.3-7.1 A
Frequency
60 Hz
Manufacturers Warranty
1 yr
Shaft Design
Keyed

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 14.5/7.3-7.1 A, 56H Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
