  11. HVAC Motor, 1/40 HP, 3000 rpm, 115V, 3.3
Shop All 3.3 Inch Diameter Motors
Dayton

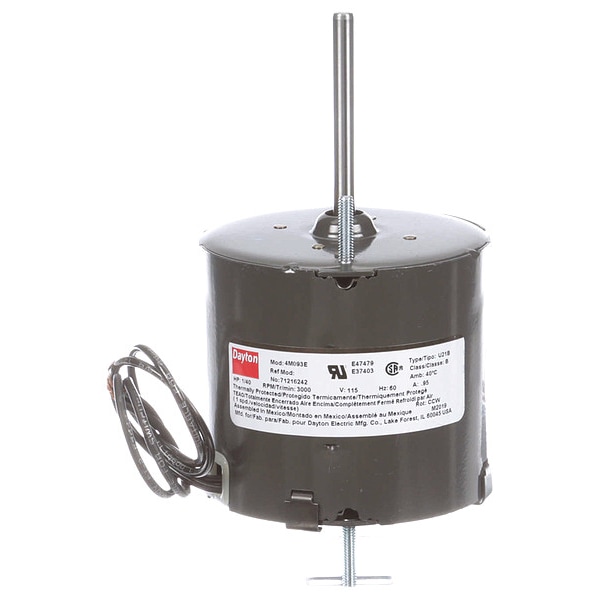

HVAC Motor, 1/40 HP, 3000 rpm, 115V, 3.3

product price: $52.39
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 115V AC
  • Nameplate RPM 3,000
  • Motor Enclosure Design Totally Enclosed Air-Over
  • Number of Speeds 1
  • HP 1/40
See all product information

Product Information

Dimensions

Cord Length 12 in
Body Dia. 3 5/16 in
Shaft Length 2 9/16 in
Length Less Shaft 3 1/2 in
Shaft Dia. 1/4 in

Details

Voltage 115V AC
Nameplate RPM 3,000
Motor Enclosure Design Totally Enclosed Air-Over
Number of Speeds 1
HP 1/40
RPM Range 1,801-3,000
Number of Shafts 1
Motor Thermal Protection Auto
Duty Continuous
Motor Bearings Sleeve
No. of Speeds 1
Application OEM and Replacement Use In A Wide Variety of Fan and Blower
Mounting Pattern 2-7/8
Motor Shaft Design Flat
Phase Single
Max. Ambient Temp. 40 Degrees C
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Full Load Amps 0.9 A
Motor Service Factor 1
Motor Shaft Rotation CCWSE
Motor Sub Application Direct Drive Fan/Blower
Hz 60 Hz
Motor Application HVAC/R
Stud/Base Mtg. Pattern 2-7/8 in
Motor Mounting Type Stud
Motor Design Shaded Pole
Item HVAC Motor
Mounting Stud Location 2/Both Ends
Frame 3.3
Ins. Class B
Capacitor Required No
Usable @ 200V No
Duty Cycle Continuous
Motor Mounting Position All Angle
Usable @ 208V No
Mounting Stud Pattern 2 7/8 in
Mounting Stud
Type OEM Replacement

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/40 HP, Nameplate RPM 3,000, No. of Speeds 1, Voltage 115V AC, Full Load Amps 0.9 A, 3.3 Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CCWSE, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Number of Shafts 1
