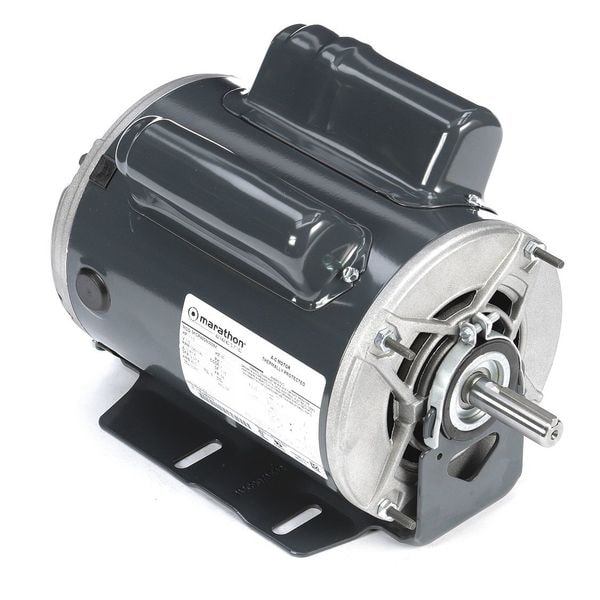

Capacitor-Start/Run General Purpose Motor, 1 hp, 1/3 hp HP, 115V AC Voltage, 56 Frame

  • Mfr # 5KCR49SN3009X

  • Zoro # G5529833

product price:  $713.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Cradle Base
HP
1 hp, 1/3 hp
RPM Range
1,701-1,800
Voltage
115V AC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
5KCR49SN3009X
Zoro #
G5529833
UPC #
-
Country of Origin
Multiple

Dimensions

Length Less Shaft
10 1/8 in
Shaft Dia.
5/8 in
Manufacturers Warranty Length
1 yr
Shaft Length
2 in
Overall Length
12 in
Shaft Diameter
5/8 in
Frame Size
56

Details

Item
General Purpose Motor
Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Cradle Base
HP
1 hp, 1/3 hp
RPM Range
1,701-1,800
Voltage
115V AC
Frame
56
Motor Thermal Protection
Auto
Motor Service Factor
1.15
No. of Speeds
2
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Application
General Purpose
Motor Sub Application
Direct Drive Fan/Blower
Nameplate RPM
1,725/1,140 RPM
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start/Run
Standards
CSA Certified, UL Listed
Frame Material
Steel
Nominal Efficiency
70 %
Hz
60 Hz
Ins. Class
B
Full Load Amps
10.8/7.4 A
RPM Group
1701-1800
Inverter Rated
Not Inverter Rated
Phase
Single
Duty
Continuous
Max. Ambient Temp.
40 Degrees C
Motor Bearings
Ball
Usable @ 208V
Not Usable at 208V
Duty Cycle
Continuous
Weight
30 lb
Usable @ 200V
Not Usable at 200V
Capacitor Required
Yes
Inverter Rating
Not Inverter Rated
Efficiency Rating
Standard Efficiency (IE1)
Nameplate Service Factor @ 60 Hz
1.15
Motor Enclosure Type
Open Drip Proof
Number of Speeds
2
Full Load Current @ 60 Hz
10.8/7.4 A
Product Type
General Purpose Motor
Application
General Purpose
Frequency
60 Hz
Sub Application
Direct Drive Fan/Blower
Bearing Type
Ball
Insulation Class
B
Shaft Design
Keyed
Manufacturers Warranty
1 yr
Ambient Temperature - Maximum
40 Degrees C

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp, 1/3 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 115V AC, Full Load Amps 10.8/7.4 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base
