Shop WEG

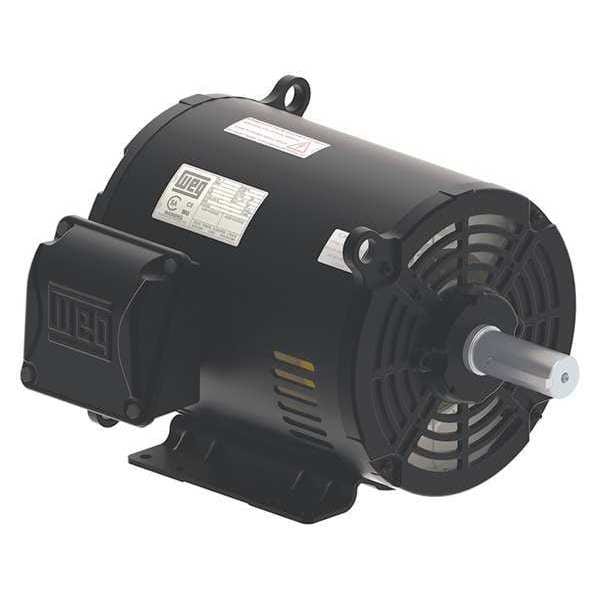

Three-Phase General Purpose Motor, 20 HP, 254/6T Frame, 230/460V AC Voltage, 1,770 Nameplate RPM

  • Mfr # 02018OT3E256T-S

  • Zoro # G3474670

product price:
$
1,630.48
/ea
Additional $135.00 delivery surcharge applies per item.
See details

Key Features

HP
20
Nameplate RPM
1,770
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
50.0/25.0 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
02018OT3E256T-S
Zoro #
G3474670
UPC #
-
Country of Origin
Multiple

Dimensions

Length Less Shaft
16 1/2 in
Overall Length
20 1/2 in
Shaft Dia.
1 5/8 in
Shaft Length
4 in
Manufacturers Warranty Length
3 yr
Frame Size
254-6T
Shaft Diameter
1 5/8 in
Wire Rope Length
20 1/2 in
Length
20 1/2 in

Details

Item
General Purpose Motor
HP
20
Nameplate RPM
1,770
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
50.0/25.0 A
Frame
254/6T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Shaft Design
Keyed
Nominal Efficiency
93 %
Standards
CSA (70014057), UL (E104590
CC Number
CC029A
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
Green Environmental Attribute
Does not Contain Formaldehyde
Inverter Rated
Yes
Full Load Amps @ 50Hz
54.0/28.6, 59.8/29.9 A
NEMA Design
None
RPM @ 50Hz
1460/1465 rpm
Duty Cycle
Continuous
Service Factor @ 50Hz
1.15
Usable @ 200V
Not Usable at 200V
HP @ 50Hz
20 hp
Weight
213 lb
Voltage @ 50Hz
190/380, 220/415
Usable @ 208V
Usable at 208V
Application
General Purpose
Frame Material
Steel
Frequency
60 Hz
Product Type
General Purpose Motor
Efficiency Rating
NEMA Premium Efficiency
Shaft Design
Keyed
Inverter Rating
Inverter Rated
Full Load Current @ 50 Hz
54.0/28.6, 59.8/29.9 A
Ambient Temperature - Maximum
40 Degrees C
Nameplate Horsepower @ 50 Hz
20 hp
Full Load Current @ 60 Hz
50.0/25.0 A
Motor Enclosure Type
Open Drip Proof
Nameplate Voltage @ 50 Hz
380V AC, 400V AC, 415V AC
Number of Speeds
1
Bearing Type
Ball
Nameplate RPM @ 50 Hz
3,525/2,910 RPM
Sub Application
Air Compressor, Fan/Blower
Manufacturers Warranty
3 yr
Insulation Class
F
Nameplate Service Factor @ 60 Hz
1.15
Nameplate Service Factor @ 50 Hz
1.15

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 20 HP, Nameplate RPM 1,770, Frame 254/6T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 50.0/25.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93 Percent, Continuous Duty, 1701-1800, CSA (70014057), UL (E104590
