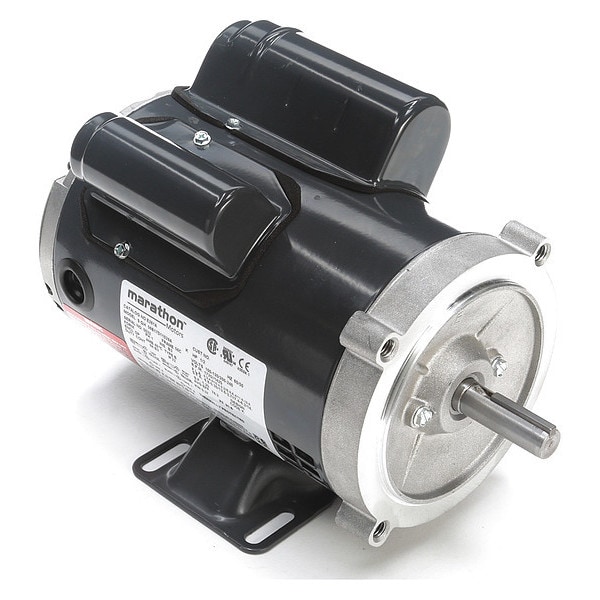

Capacitor-Start/Run General Purpose Motor, 1/2 hp HP, 120/240V AC Voltage, 56C Frame
- Mfr # 056B17D11029
- Zoro # G0600457
product price:Â
$
402.99
/ea
Free Shipping & Returns
Key Features
Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
C-Face, Rigid Base
HP
1/2 hp
RPM Range
1,701-1,800
Voltage
120V AC, 240V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 056B17D11029
- Zoro #
- G0600457
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Shaft Length
- 1 7/8 in
- Shaft Dia.
- 5/8 in
- Manufacturers Warranty Length
- 1 yr
- Overall Length
- 11 7/16 in
- Length Less Shaft
- 9 9/16 in
- Frame Size
- 56C
- Shaft Diameter
- 5/8 in
- Wire Rope Length
- 11 7/16 in
- Length
- 11 7/16 in
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 120/240V AC, Full Load Amps 4.4/2.2 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Usable at 200V, Hz 60/50 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base
