Capacitor-Start/Run General Purpose Motor, 1/2 hp HP, 120/240V AC Voltage, 56C Frame
Mfr # 056B17D11031
Zoro # G0600402
product price: $483.99
/ea
Free Shipping & Returns
Key Features
Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
C-Face, Rigid Base
HP
1/2 hp
RPM Range
1,701-1,800
Voltage
120/240V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
056B17D11031
Zoro #
G0600402
UPC #
-
Country of Origin
Mexico
Dimensions
Length Less Shaft
9 1/2 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Overall Length
11 7/16 in
Shaft Dia.
5/8 in
Description

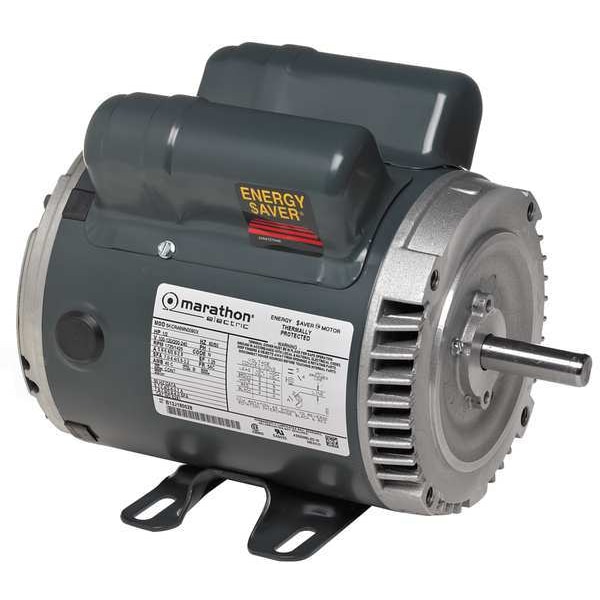

General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 120/240V AC, Full Load Amps 5.2-4.4/2.6-2.2 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Usable at 200V, Hz 60/50 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW
