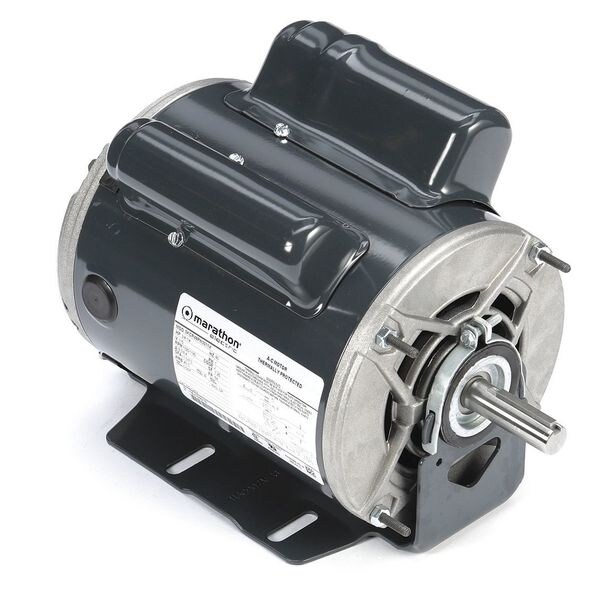

Capacitor-Start/Run General Purpose Motor, 1/4 hp, 3/4 hp HP, 115V AC Voltage, 56 Frame
Mfr # 5KCR49PN3011X
Zoro # G5722071
product price: $664.99
/ea
Free Shipping & Returns
Key Features
Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Cradle Base
HP
1/4 hp, 3/4 hp
RPM Range
1,701-1,800
Voltage
115V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
5KCR49PN3011X
Zoro #
G5722071
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Length
2 in
Manufacturers Warranty Length
1 yr
Overall Length
11 1/2 in
Shaft Dia.
5/8 in
Length Less Shaft
9 5/8 in
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/4 hp, 3/4 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 115V AC, Full Load Amps 9.0/6.4 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base
