Shop CENTURY

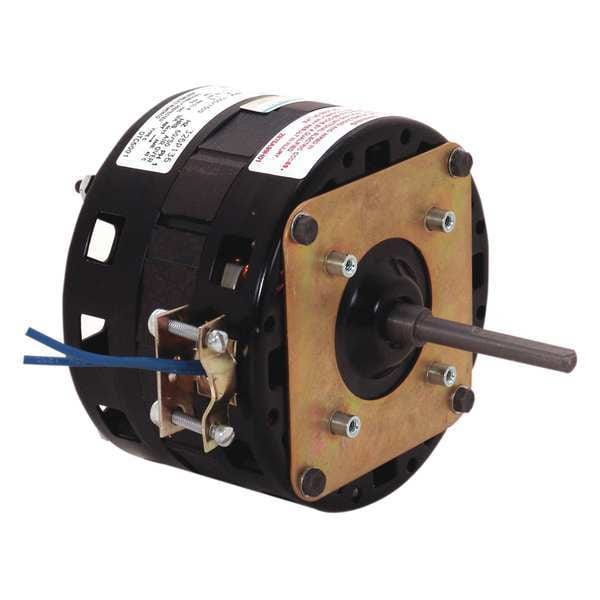

Condenser Fan Motor, 1/15 hp

  • Mfr # OTC6001

  • Zoro # G2319247

product price:  $162.99
/ea
Free Shipping & Returns

Key Features

Hz
60/50
Ins. Class
B
Nameplate RPM
1,500
Motor Design
Shaded Pole
Motor Sub Application
Condenser Fan
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
OTC6001
Zoro #
G2319247
UPC #
-
Country of Origin
Mexico

Dimensions

Body Dia.
5 in
Length Less Shaft
4 in
Overall Length
6 1/8 in
Shaft Dia.
5/16 in
Shaft Length
2 13/16 in
Stud Size
#8-32
Lead Length
31 to 34"
Frame Size
42Y
Mounting Stud Thread Size
#8-32
Body Diameter
5 in
Shaft Diameter
5/16 in
Wire Rope Length
6 1/8 in

Details

Hz
60/50
Ins. Class
B
Nameplate RPM
1,500
Item
Condenser Fan Motor
Motor Design
Shaded Pole
Motor Sub Application
Condenser Fan
Phase
Single
No. of Speeds
1
OEM Replacement Brand
Tecumseh
Motor Thermal Protection
Auto
Capacitor Required
Capacitor Not Required
Motor Application
OEM Replacement
Voltage Compatibility
115/230V AC, 120/240V AC, 230V AC, 240V AC
Duty
Continuous
Motor Shaft Rotation
CWSE
Motor Shaft Design
Flat
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Standards
CSA, UL Recognized
Replacement For
326P136
Frame
42Y
Motor Bearings
Sleeve
Voltage
230V AC
Motor Service Factor
1
Motor Mounting Type
Face
Full Load Amps
1.3 A
Max. Ambient Temp.
40 Degrees C
Motor Enclosure Design
Open Air-Over
HP
1/15
Number of Shafts
1
Application
Tecumseh
RPM Range
1,401-1,500
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Motor Mounting Position
Horizontal
Weight
8 lb
Rotation
CCWLE
Stud Quantity
4
Mounting
Face
Features
OEM Replacement for Tecumseh
Number of Speeds
1
Ambient Temperature - Maximum
40 Degrees C
Product Type
Condenser Fan Motor
Insulation Class
B
Compatible Brand
Tecumseh
Nameplate Service Factor @ 60 Hz
1
Bearing Type
Sleeve
Sub Application
Condenser Fan
Full Load Current @ 60 Hz
1.3 A
Shaft Design
Flat
Mounting Position
Horizontal
Motor Enclosure Type
Open Air Over

Description

Condenser Fan Motor, Single Phase, Motor Design Shaded Pole, 1/15 hp HP, Nameplate RPM 1,500 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 1.3 A, 42Y Frame, OEM Replacement Brand Tecumseh, Replacement For 326P136, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type C-Face
