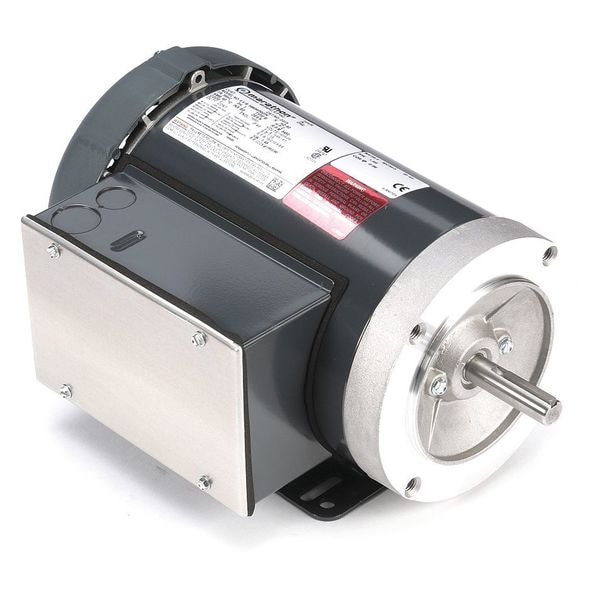

Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/208-230V AC Voltage, 56HC Frame

  • Mfr # 056B34F5327

  • Zoro # G2099496

product price:  $592.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face, Rigid Base
HP
2 hp
RPM Range
3,001-3,600
Voltage
115/208-230V AC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
056B34F5327
Zoro #
G2099496
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
2 1/16 in
Manufacturers Warranty Length
1 yr
Overall Length
13 5/16 in
Shaft Dia.
5/8 in
Length Less Shaft
11 1/4 in
Shaft Diameter
5/8 in
Frame Size
56HC

Details

Item
General Purpose Motor
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face, Rigid Base
HP
2 hp
RPM Range
3,001-3,600
Voltage
115/208-230V AC
Frame
56HC
Motor Thermal Protection
None
Motor Service Factor
1.15
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Application
General Purpose
Nameplate RPM
3,450 RPM
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start/Run
Standards
CE, CSA, UL Recognized
Inverter Rated
Not Inverter Rated
Ins. Class
B
Includes
Capacitor
Frame Material
Steel
Duty
Continuous
Full Load Amps
16.6/9.4-8.3 A
Motor Bearings
Ball
Max. Ambient Temp.
40 Degrees C
Phase
Single
RPM Group
3001-3600
Hz
60 Hz
Nominal Efficiency
79 %
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Usable @ 200V
Not Usable at 200V
Weight
38 lb
Capacitor Required
Yes
Inverter Rating
Not Inverter Rated
Bearing Type
Ball
Efficiency Rating
Standard Efficiency (IE1)
Manufacturers Warranty
1 yr
Insulation Class
B
Application
General Purpose
Motor Enclosure Type
Totally Enclosed Fan Cooled
Full Load Current @ 60 Hz
16.6/9.4-8.3 A
Number of Speeds
1
Nameplate Service Factor @ 60 Hz
1.15
Shaft Design
Keyed
Frequency
60 Hz
Product Type
General Purpose Motor
Ambient Temperature - Maximum
40 Degrees C
Mounting Position
Horizontal

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 16.6/9.4-8.3 A, 56HC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
