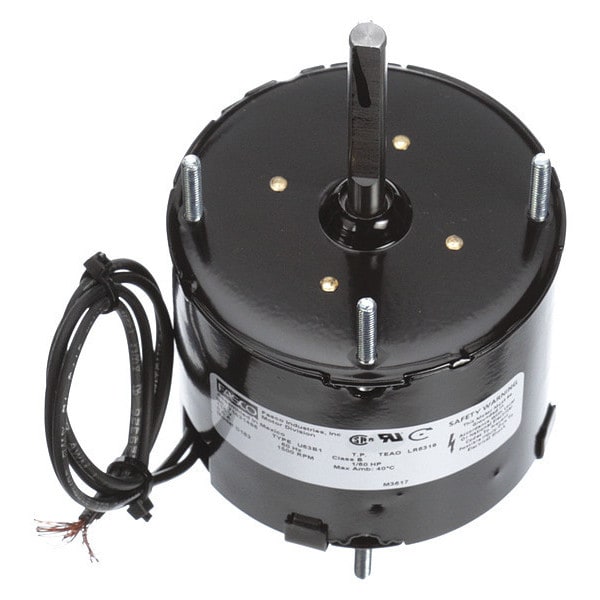

HVAC Motor, 1/60 HP, 1500 rpm, 115V, 3.3
Mfr # D182
Zoro # G6129776
product price:Â $119.99
/ea
Free Shipping & Returns
Key Features
Voltage
115V AC
Nameplate RPM
1,500
Motor Enclosure Design
Totally Enclosed Air-Over
Number of Speeds
1
HP
1/60
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
D182
Zoro #
G6129776
UPC #
663001024828
Country of Origin
Mexico
Dimensions
Length Less Shaft
3 3/16 in
Shaft Length
2 1/4 in
Shaft Dia.
5/16 in
Body Dia.
3 5/16 in
Bolt Circle Dia.
2 7/8 in
Lead Length
12 in
Overall Length
5 5/16 in
Stud Size
#8-32
Mounting Stud Thread Size
#8-32
Shaft Diameter
5/16 in
Bolt Circle Diameter
2 7/8 in
Body Diameter
3.3 in
Frame Size
3.3
Description
Fan and Blower Motor, Single Phase, Motor Design Shaded Pole, 1/60 hp HP, Nameplate RPM 1,500 RPM, No. of Speeds 1, Voltage 115V AC, 0.60 A Full Load Amps, 3.3 Frame, Output Watts 10 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Frame Material Steel
