Shop LEESON

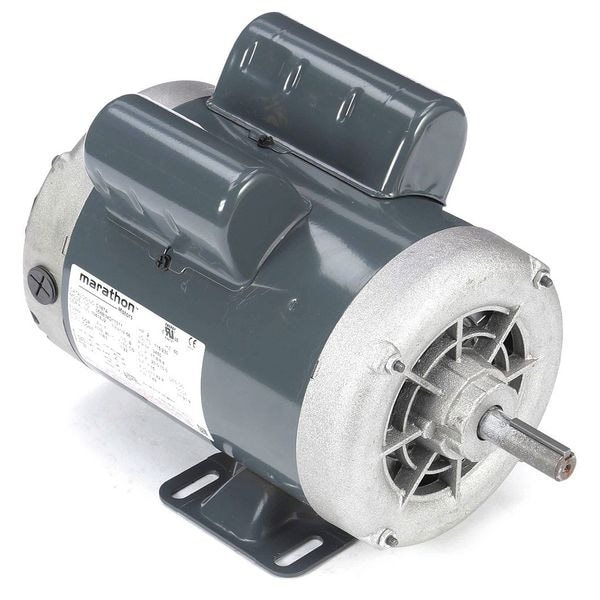

Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/230V AC Voltage, 56 Frame

  • Mfr # 056B34D11011

  • Zoro # G2002561

product price:  $619.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Rigid Base
HP
2 hp
RPM Range
3,001-3,600
Voltage
115/230V AC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
056B34D11011
Zoro #
G2002561
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Overall Length
12 15/16 in
Shaft Length
1 7/8 in
Length Less Shaft
11 1/16 in
Shaft Diameter
5/8 in
Frame Size
56

Details

Item
General Purpose Motor
Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Rigid Base
HP
2 hp
RPM Range
3,001-3,600
Voltage
115/230V AC
Frame
56
Motor Thermal Protection
Manual
Motor Service Factor
1.15
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Application
General Purpose
Nameplate RPM
3,450 RPM
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start/Run
Standards
CE, CSA, UL Recognized
Frame Material
Steel
Max. Ambient Temp.
40 Degrees C
Nominal Efficiency
78.5 %
Hz
60 Hz
Phase
Single
Full Load Amps
14.2/7.1 A
Ins. Class
B
RPM Group
3001-3600
CC Number
CC003A
Inverter Rated
Not Inverter Rated
Duty
Continuous
Motor Efficiency Group
NEMA Premium Efficient
Motor Bearings
Ball
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Weight
37 lb
Capacitor Required
No
Inverter Rating
Not Inverter Rated
Shaft Design
Keyed
Motor Enclosure Type
Open Drip Proof
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
14.2/7.1 A
Insulation Class
B
Application
General Purpose
Nameplate Service Factor @ 60 Hz
1.15
Mounting Position
Horizontal
Efficiency Rating
Premium Efficiency (IE3)
Product Type
General Purpose Motor
Frequency
60 Hz
Bearing Type
Ball
Number of Speeds
1

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 14.2/7.1 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
