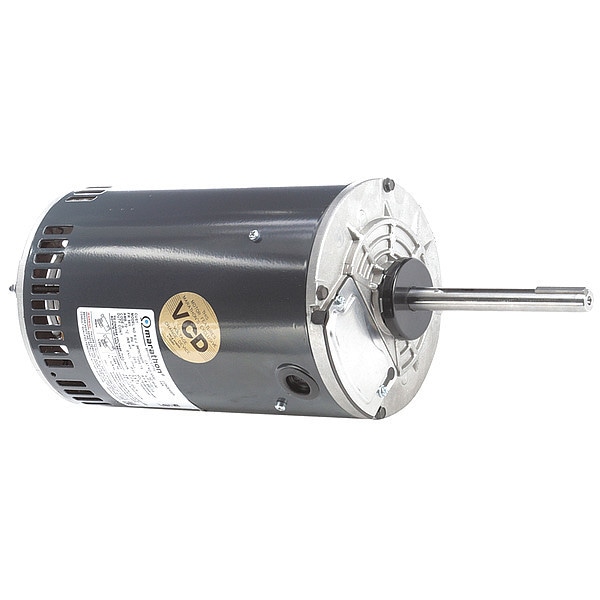

Condenser Fan Motor, 1 1/2 hp

  • Mfr # 056T8O5307
  • Zoro # G7249851
product price:
$
769.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1 1/2
RPM Range
0-1,000
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
056T8O5307
Zoro #
G7249851
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
5 in
Body Dia.
6 1/2 in
Length Less Shaft
12 1/16 in
Overall Length
17 1/16 in
Manufacturers Warranty Length
1 yr
Frame Size
56Y
Body Diameter
6.5 in
Shaft Diameter
5/8 in
Wire Rope Length
17 1/16 in
Length
17 1/16 in

Details

Item
Condenser Fan Motor
Motor Design
Three-Phase
Phase
Three
HP
1 1/2
RPM Range
0-1,000
No. of Speeds
1
Voltage
208V AC to 230V AC, 460V AC
Motor Shaft Rotation
CW/CCW
Frame
56Y
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Band/Stud
Motor Mounting Position
Horizontal or Vertical Shaft Up
Motor Thermal Protection
Auto
Max. Ambient Temp.
70 Degrees C
Nameplate RPM
850
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 230V AC, 460V AC, 460V AC
Hz
50/60 Hz
Capacitor Required
Capacitor Not Required
Ins. Class
H
Application
Condenser Fan
Full Load Amps
7.5-6.8/3.4 A
Motor Service Factor
1
Standards
CSA Certified (LR2025), UL Recognized
Motor Bearings
Ball
Motor Shaft Design
Keyed with Single Flat
Nominal Efficiency
72 %
Duty
Continuous
Features
(4) Locating Screws 90 Degrees Apart, 3 5/16 in From Outer Edge of Shaft Slinger, Voltage Change Device for Quick Voltage Changes
Motor Frame Material
Steel
Usable @ 208V
Usable at 208V
Conduit Box Location
Exterior
Voltage @ 50Hz
208-230/460V AC
RPM @ 50Hz
850
Full Load Amps @ 50Hz
7.5-6.8/3.4 A
Output Watts
1100 W
Weight
47 lb
HP @ 50Hz
1-1/2
Usable @ 200V
Not Usable at 200V
Conduit Box Position
F1
Service Factor @ 50Hz
1
Removable Base
No
Duty Cycle
Continuous
Bearing Type
Ball
Number of Speeds
1
Nameplate Voltage @ 50 Hz
208-230/460V AC
Full Load Current @ 50 Hz
7.5-6.8/3.4 A
Mounting Position
Horizontal/Vertical Shaft Up
Manufacturers Warranty
1 yr
Shaft Design
Keyed
Motor Enclosure Type
Open Air Over
Drive Type
Direct Drive
Nameplate RPM @ 50 Hz
850
Sub Application
Condenser Fan
Frequency
60/50 Hz
Nameplate Service Factor @ 60 Hz
1
Product Type
Condenser Fan Motor
Full Load Current @ 60 Hz
7.5-6.8/3.4 A
Frame Material
Steel
Insulation Class
H
Nameplate Service Factor @ 50 Hz
1
Nameplate Horsepower @ 50 Hz
1 1/2 hp
Wattage
1100 W
Ambient Temperature - Maximum
70 Degrees C

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 850 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 7.5-6.8/3.4 A Full Load Amps, 56Y Frame, Output Watts 1100 W, 60/50 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class H, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Belly Band
