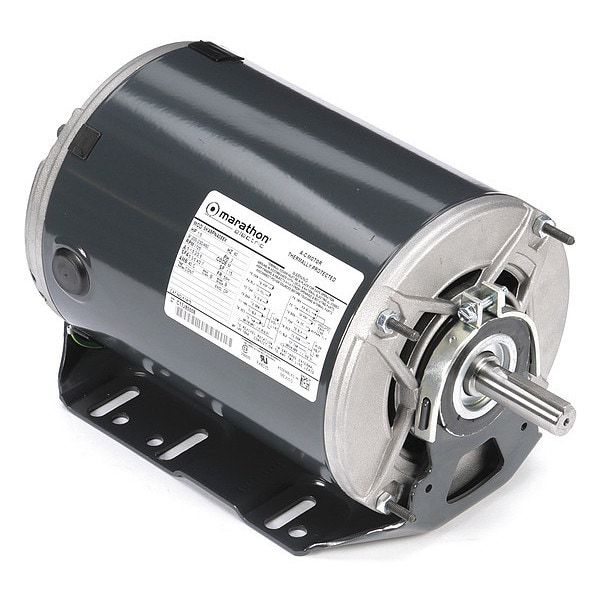

Condenser Fan Motor, 1-1/2 HP, 56H Frame

  • Mfr # 5K49PN4088X
  • Zoro # G7347300
product price:
$
384.99
/ea
Free Shipping & Returns

Key Features

Motor Design
3-Phase
Phase
Three
HP
1 1/2
RPM Range
1,701-1,800
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5K49PN4088X
Zoro #
G7347300
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Lead Length
5"
Stud Size
#10-32
Body Dia.
6 7/16 in
Length Less Shaft
10 in
Resilient Ring Dia.
2 1/2 in
Overall Length
12 in
Manufacturers Warranty Length
1 yr
Bolt Circle Dia.
5-15/16"
Shaft Diameter
5/8 in
Resilient Ring Diameter
2 1/2 in
Body Diameter
6.4 in
Frame Size
56H

Details

Item
Belt Drive Motor
Motor Design
3-Phase
Phase
Three
HP
1 1/2
RPM Range
1,701-1,800
No. of Speeds
1
Voltage
200V AC to 230V AC, 460V AC
Motor Shaft Rotation
CW/CCW
Frame
56H
Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Cradle Base
Motor Mounting Position
Horizontal
Motor Thermal Protection
Automatic
Max. Ambient Temp.
104 Degrees F
Nameplate RPM
1,725
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 230V AC, 460V AC, 460V AC
Hz
60 Hz
Motor Bearings
Ball
Ins. Class
B
Application
Fan/Blower
Duty
Continuous
Stud Quantity
4
Capacitor Required
Capacitor Not Required
Full Load Amps
5.1-5.2,2.6 A
Ring to Ring Center
9 5/8 in
Motor Shaft Design
Flat
Motor Service Factor
1.15
Nominal Efficiency
80.2 %
Mounting Stud Pattern
4-3/16 in x 4-3/16 in
Standards
CSA (MC236833), UL (E14133)
Duty Cycle
Continuous
Motor Frame Material
Steel
Usable @ 200V
No
Usable @ 208V
Yes
Weight
31 lb
Manufacturers Warranty
1 yr
Bearing Type
Ball
Frame Material
Steel
Product Type
Fan and Blower Motor
Number of Speeds
1
Mounting Position
All Angle
Full Load Current @ 60 Hz
5.1-5.2/2.6 A
Nameplate Service Factor @ 60 Hz
1.15
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Open Drip Proof
Frequency
60 Hz
Shaft Design
Flat
Drive Type
Belt Drive
Insulation Class
B

Description

Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 200-230/460V AC, 5.1-5.2/2.6 A Full Load Amps, 56H Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base
