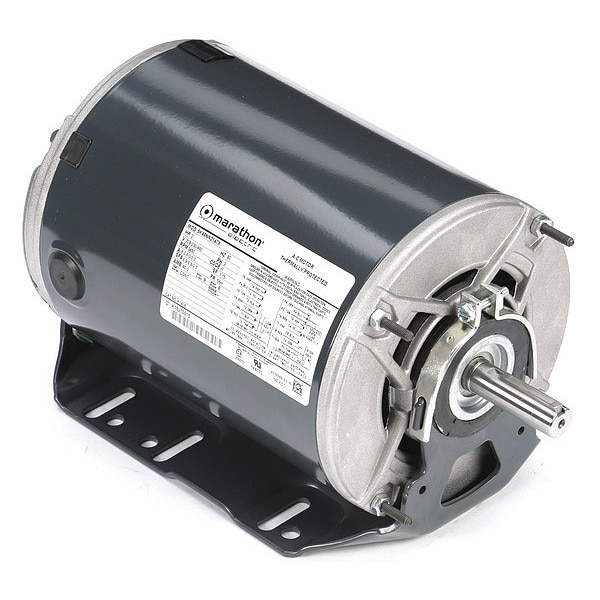

Condenser Fan Motor, 2 HP, 56H Frame

  • Mfr # 5K49NN2147X
  • Zoro # G7253939
product price:
$
395.99
/ea
Free Shipping & Returns

Key Features

Motor Design
3-Phase
Phase
Three
HP
2
RPM Range
3,001-3,600
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5K49NN2147X
Zoro #
G7253939
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Stud Size
#10-32
Body Dia.
6 7/16 in
Length Less Shaft
10 in
Resilient Ring Dia.
2 1/2 in
Overall Length
12 in
Manufacturers Warranty Length
1 yr
Bolt Circle Dia.
5-15/16"
Lead Length
5"
Body Diameter
6.4 in
Frame Size
56H
Shaft Diameter
5/8 in
Resilient Ring Diameter
2 1/2 in

Details

Item
Belt Drive Motor
Motor Design
3-Phase
Phase
Three
HP
2
RPM Range
3,001-3,600
No. of Speeds
1
Voltage
208V AC to 230V AC, 460V AC
Motor Shaft Rotation
CW/CCW
Frame
56H
Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Cradle Base
Motor Mounting Position
Horizontal
Motor Thermal Protection
None
Max. Ambient Temp.
104 Degrees F
Nameplate RPM
3,450
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 230V AC, 460V AC, 460V AC
Duty
Continuous
Ring to Ring Center
9 5/8 in
Motor Service Factor
1.15
Stud Quantity
4
Ins. Class
B
Standards
CSA (MC236833), UL (E14133)
Application
Fan/Blower
Motor Bearings
Ball
Motor Shaft Design
Flat
Nominal Efficiency
80.2 %
Full Load Amps
6.0-6.0,3.0 A
Mounting Stud Pattern
4-3/16 in x 4-3/16 in
Capacitor Required
Capacitor Not Required
Hz
60 Hz
Motor Frame Material
Steel
Duty Cycle
Continuous
Usable @ 208V
Yes
Weight
30 lb
Usable @ 200V
No
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1.15
Product Type
Fan and Blower Motor
Manufacturers Warranty
1 yr
Shaft Design
Flat
Bearing Type
Ball
Frequency
60 Hz
Mounting Position
Horizontal
Number of Speeds
1
Full Load Current @ 60 Hz
6.0-6.0/3.0 A
Drive Type
Belt Drive
Motor Enclosure Type
Open Drip Proof
Frame Material
Steel

Description

Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 6.0-6.0/3.0 A Full Load Amps, 56H Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base
