Shop LEESON

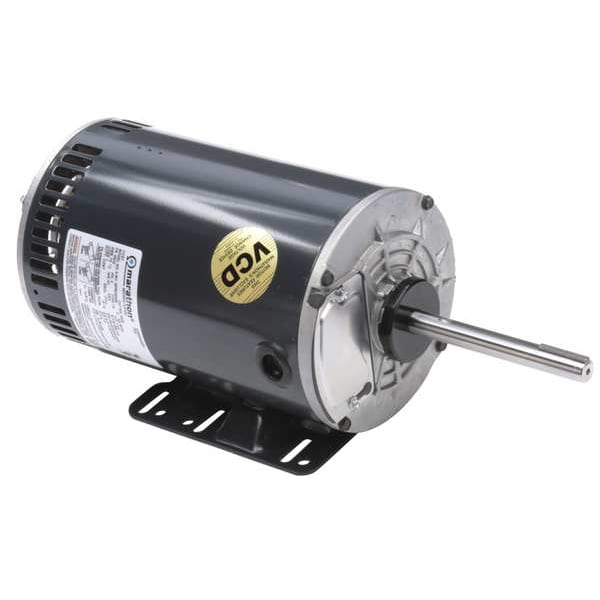

Condenser Fan Motor, 1 hp

  • Mfr # 056T8O5306
  • Zoro # G5505315
product price:
$
756.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1
RPM Range
0-1,000
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
056T8O5306
Zoro #
G5505315
UPC #
-
Country of Origin
Multiple

Dimensions

Shaft Dia.
5/8 in
Shaft Length
5 in
Length Less Shaft
12 1/16 in
Overall Length
17 1/16 in
Body Dia.
6 1/2 in
Body Diameter
6.5 in
Frame Size
56HZ
Shaft Diameter
5/8 in
Wire Rope Length
17 1/16 in
Length
17 1/16 in

Details

Item
Condenser Fan Motor
Motor Design
Three-Phase
Phase
Three
HP
1
RPM Range
0-1,000
No. of Speeds
1
Voltage
208V AC to 230V AC, 460V AC
Motor Shaft Rotation
CW/CCW
Frame
56HZ
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Rigid Base
Motor Mounting Position
Horizontal or Vertical Shaft Up
Motor Thermal Protection
Auto
Max. Ambient Temp.
70 Degrees C
Nameplate RPM
850
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 230V AC, 460V AC, 460V AC
Nominal Efficiency
74.5 %
Hz
50/60 Hz
Motor Shaft Design
Keyed with Single Flat
Duty
Continuous
Application
Condenser Fan
Standards
CSA Certified (LR2025), UL Recognized
Full Load Amps
5.1-5.3/2.6 A
Motor Bearings
Ball
Ins. Class
H
Motor Service Factor
1
Features
Combination Base With 12 Mounting Holes, Shaft Slinger, Threaded Lead Exit
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Motor Frame Material
Steel
Usable @ 200V
Not Usable at 200V
HP @ 50Hz
1
RPM @ 50Hz
850
Voltage @ 50Hz
208-230/460V AC
Full Load Amps @ 50Hz
5.1-5.3/2.6 A
Service Factor @ 50Hz
1
Weight
49 lb
Output Watts
750 W
Mounting
Rigid Base
Full Load Current @ 50 Hz
5.1-5.3/2.6 A
Frequency
60/50 Hz
Nameplate RPM @ 50 Hz
850
Nameplate Voltage @ 50 Hz
208-230/460V AC
Shaft Design
Keyed
Wattage
750 W
Nameplate Horsepower @ 50 Hz
1 hp
Bearing Type
Ball
Drive Type
Direct Drive
Insulation Class
H
Motor Enclosure Type
Open Air Over
Nameplate Service Factor @ 50 Hz
1
Nameplate Service Factor @ 60 Hz
1
Sub Application
Condenser Fan
Product Type
Condenser Fan Motor
Capacitor Required
Capacitor Not Required
Mounting Position
Horizontal/Vertical Shaft Up
Full Load Current @ 60 Hz
5.1-5.3/2.6 A
Number of Speeds
1
Ambient Temperature - Maximum
70 Degrees C
Frame Material
Steel

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 850 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 5.1-5.3/2.6 A Full Load Amps, 56HZ Frame, Output Watts 750 W, 60/50 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class H, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Rigid Base
