Shop LEESON

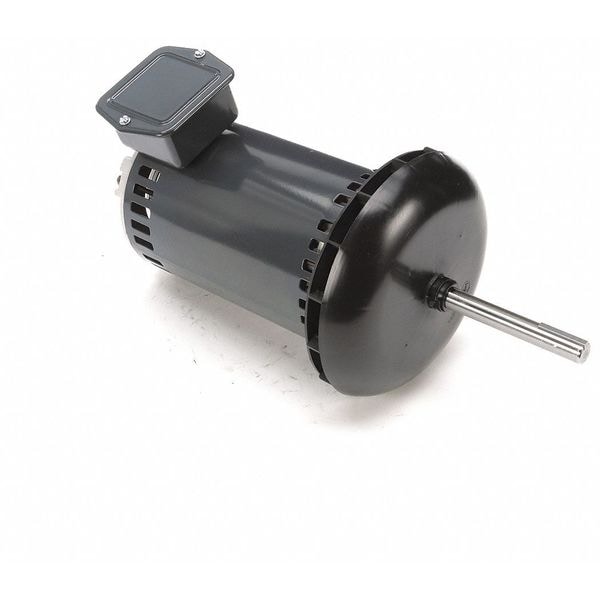

Condenser Fan Motor, 1 hp

  • Mfr # 5KCP39SNB482S
  • Zoro # G0387567
product price:
$
396.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1
RPM Range
1,001-1,100
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5KCP39SNB482S
Zoro #
G0387567
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
3 11/16 in
Overall Length
16 1/16 in
Length Less Shaft
12 3/8 in
Body Dia.
5 5/8 in
Lead Length
8 in
Stud Size
#8-32
Shaft Diameter
5/8 in
Body Diameter
5.6 in
Frame Size
48Z
Mounting Stud Thread Size
#8-32
Wire Rope Length
16 1/16 in
Length
16 1/16 in

Details

Item
Condenser Fan Motor
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
208V AC to 230V AC, 460V AC
Motor Shaft Rotation
CW/CCW
Frame
48Z
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Face
Motor Mounting Position
All Angle
Motor Thermal Protection
Auto
Max. Ambient Temp.
60 Degrees C
Nameplate RPM
1,075
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 230V AC, 460V AC, 460V AC
Full Load Amps
5.8-5.6/2.8 A
Standards
CSA Certified, UL Recognized
Duty
Continuous
Nominal Efficiency
67 %
Motor Bearings
Ball
Application
Condenser Fan
Ins. Class
B
Motor Service Factor
1
Motor Shaft Design
Keyed with Single Flat
Stud Quantity
8
Capacitor Required
Capacitor Included
Hz
60 Hz
Features
Shaft Slinger, Shaft With Flat
Weight
21 lb
Output Watts
750 W
Removable Base
No
Usable @ 200V
Usable at 200V
Extended Thru-Bolts
No
Bearing Protection
Rain Shields
Duty Cycle
Continuous
Motor Frame Material
Steel
Conduit Box Location
Exterior
Usable @ 208V
Usable at 208V
Frame Material
Steel
Motor Enclosure Type
Open Air Over
Shaft Design
Keyed
Ambient Temperature - Maximum
60 Degrees C
Full Load Current @ 60 Hz
5.8-5.6/2.8 A
Insulation Class
B
Bearing Protection Type
Rain Shields
Mounting Position
All Angle
Product Type
Condenser Fan Motor
Bearing Type
Ball
Wattage
750 W
Number of Speeds
1
Sub Application
Condenser Fan
Nameplate Service Factor @ 60 Hz
1
Drive Type
Direct Drive
Frequency
60 Hz

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 5.8-5.6/2.8 A Full Load Amps, 48Z Frame, Output Watts 750 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over
