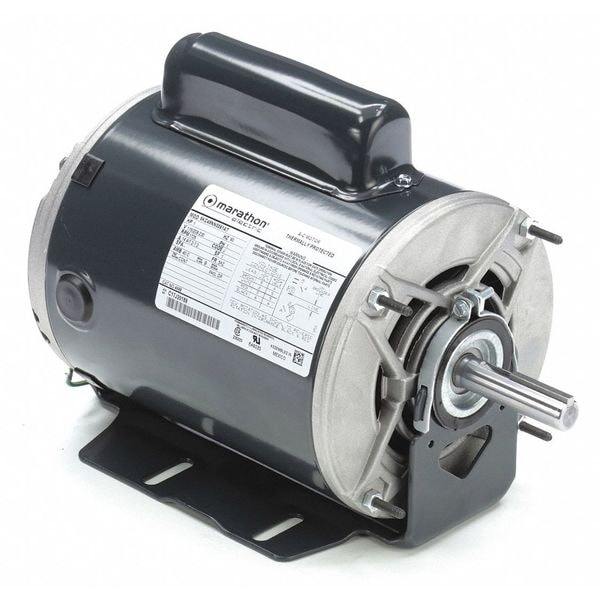

Condenser Fan Motor, 1 HP, 56Z Frame

  • Mfr # 5KC49NN0061T

  • Zoro # G7260053

product price:  $388.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Phase
Single
HP
1
RPM Range
1,701-1,800
No. of Speeds
1
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
5KC49NN0061T
Zoro #
G7260053
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
2 1/4 in
Bolt Circle Dia.
5-15/16"
Overall Length
10 3/4 in
Body Dia.
6 7/16 in
Stud Size
#10-32
Manufacturers Warranty Length
1 yr
Resilient Ring Dia.
2 1/4 in
Length Less Shaft
9 3/8 in
Shaft Diameter
5/8 in
Body Diameter
6.4 in
Resilient Ring Diameter
2 1/4 in
Frame Size
56Z

Details

Item
Belt Drive Motor
Motor Design
Capacitor-Start
Phase
Single
HP
1
RPM Range
1,701-1,800
No. of Speeds
1
Voltage
115/208-230V AC
Motor Shaft Rotation
CW/CCW
Frame
56Z
Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Cradle Base
Motor Mounting Position
Horizontal
Motor Thermal Protection
Auto
Max. Ambient Temp.
104 Degrees F
Nameplate RPM
1,725
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Ring to Ring Center
9 1/16 in
Motor Bearings
Ball
Capacitor Required
Capacitor Included
Mounting Stud Pattern
4-3/16 in x 4-3/16 in
Ins. Class
B
Duty
Continuous
Standards
CSA (MC236833), UL (E14133)
Stud Quantity
4
Motor Service Factor
1.15
Motor Shaft Design
Flat
Nominal Efficiency
69 %
Application
Fan/Blower
Full Load Amps
14.4,7.2-7.2 A
Hz
60 Hz
Usable @ 208V
Yes
Weight
27 lb
Duty Cycle
Continuous
Usable @ 200V
No
Motor Frame Material
Steel
Shaft Design
Flat
Bearing Type
Ball
Product Type
Fan and Blower Motor
Nameplate Service Factor @ 60 Hz
1.15
Manufacturers Warranty
1 yr
Frequency
60 Hz
Frame Material
Steel
Drive Type
Belt Drive
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Open Drip Proof
Full Load Current @ 60 Hz
14.4/7.2-7.2 A
Insulation Class
B
Mounting Position
All Angle
Number of Speeds
1

Description

Fan and Blower Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 14.4/7.2-7.2 A Full Load Amps, 56Z Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base
