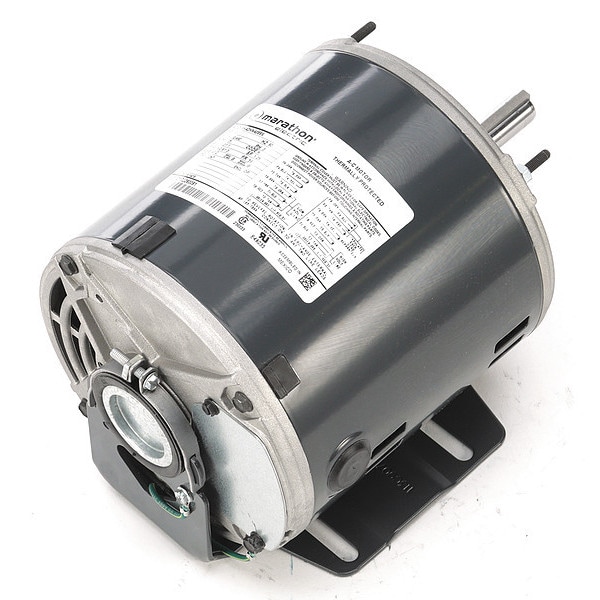

Condenser Fan Motor, 1/2 HP, 56 Frame

  • Mfr # 5K42HN4089X
  • Zoro # G7250387
product price:
$
306.99
/ea
Free Shipping & Returns

Key Features

Motor Design
3-Phase
Phase
Three
HP
1/2
RPM Range
1,701-1,800
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
5K42HN4089X
Zoro #
G7250387
UPC #
-
Country of Origin
Mexico
Item
Belt Drive Motor
Motor Design
3-Phase
Phase
Three
HP
1/2
RPM Range
1,701-1,800
No. of Speeds
1
Voltage
208-230/460V AC
Motor Shaft Rotation
CW/CCW
Frame
56
Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Cradle Base
Motor Mounting Position
Horizontal
Motor Thermal Protection
Auto
Max. Ambient Temp.
104 Degrees F
Nameplate RPM
1,725
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Full Load Amps
2.3-2.2,1.1 A
Ins. Class
B
Standards
CSA (MC236833), UL (E14133)
Application
Fan/Blower
Motor Bearings
Ball
Motor Service Factor
1.25
Mounting Stud Pattern
4-3/16 in x 4-3/16 in
Hz
60 Hz
Motor Shaft Design
Keyed
Duty
Continuous
Ring to Ring Center
7 5/8 in
Capacitor Required
Capacitor Not Required
Nominal Efficiency
74.7 %
Stud Quantity
4
Motor Frame Material
Steel
Usable @ 208V
Yes
Duty Cycle
Continuous
Usable @ 200V
No
Weight
20 lb
Drive Type
Belt Drive
Frame Material
Steel
Number of Speeds
1
Mounting Position
All Angle
Manufacturers Warranty
1 yr
Shaft Design
Keyed
Product Type
Fan and Blower Motor
Full Load Current @ 60 Hz
1.1/2.3-2.2 A
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Open Drip Proof
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1.25
Insulation Class
B

Description

Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 1.1/2.3-2.2 A Full Load Amps, 56 Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base
