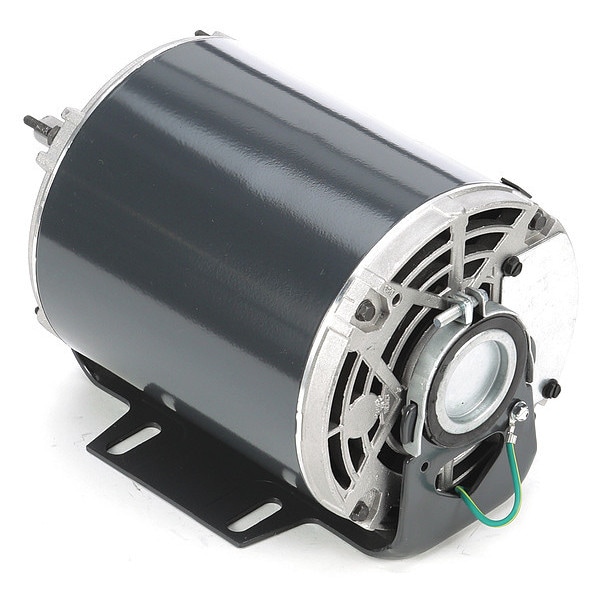

Condenser Fan Motor, 1/3 HP, 48Z Frame

  • Mfr # 5KH35JN26X
  • Zoro # G7345453
product price:
$
208.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Split-Phase
Phase
Single
HP
1/3
RPM Range
1,701-1,800
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5KH35JN26X
Zoro #
G7345453
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
1 3/4 in
Length Less Shaft
8 1/16 in
Stud Size
#8-32
Body Dia.
5 5/8 in
Bolt Circle Dia.
5-1/8"
Resilient Ring Dia.
2 1/4 in
Manufacturers Warranty Length
1 yr
Overall Length
9 15/16 in
Shaft Diameter
1/2 in
Resilient Ring Diameter
2 1/4 in
Body Diameter
5.6 in
Frame Size
48Z

Details

Item
Belt Drive Motor
Motor Design
Split-Phase
Phase
Single
HP
1/3
RPM Range
1,701-1,800
No. of Speeds
1
Voltage
230V AC
Motor Shaft Rotation
CW/CCW
Frame
48Z
Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Cradle Base
Motor Mounting Position
Horizontal
Motor Thermal Protection
Auto
Max. Ambient Temp.
104 Degrees F
Nameplate RPM
1,725
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 120V AC, 240V AC, 200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 460V AC, 230V AC, 240V AC, 277V AC, 230V AC
Ins. Class
B
Ring to Ring Center
7 11/16 in
Motor Service Factor
1.35
Capacitor Required
Capacitor Not Required
Duty
Continuous
Full Load Amps
3.3 A
Motor Bearings
Ball
Stud Quantity
4
Standards
CE, CSA (MC236833), UL (E14133)
Nominal Efficiency
58.7 %
Hz
60 Hz
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Motor Shaft Design
Flat
Application
Fan/Blower
Duty Cycle
Continuous
Usable @ 208V
No
Usable @ 200V
No
Motor Frame Material
Steel
Weight
16 lb
Product Type
Fan and Blower Motor
Shaft Design
Flat
Number of Speeds
1
Drive Type
Belt Drive
Insulation Class
B
Motor Enclosure Type
Open Drip Proof
Frame Material
Steel
Mounting Position
Horizontal
Full Load Current @ 60 Hz
3.3 A
Bearing Type
Ball
Frequency
60 Hz
Manufacturers Warranty
1 yr
Nameplate Service Factor @ 60 Hz
1.35
Ambient Temperature - Maximum
40 Degrees C

Description

Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 230V AC, 3.3 A Full Load Amps, 48Z Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel
