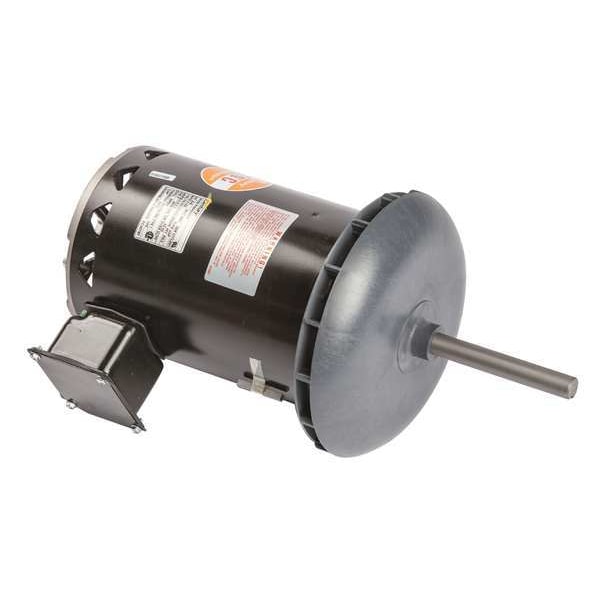

Condenser Fan Motor, 3/4 hp

  • Mfr # FC3076F
  • Zoro # G3419394
product price:
$
379.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
3/4
RPM Range
1,101-1,200
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FC3076F
Zoro #
G3419394
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
4 1/16 in
Lead Length
5 in
Length Less Shaft
10 15/16 in
Body Dia.
5 5/8 in
Overall Length
15 in
Frame Size
48Y
Shaft Diameter
5/8 in
Body Diameter
5.6 in
Wire Rope Length
15 in
Length
15 in

Details

Item
Condenser Fan Motor
Motor Design
Three-Phase
Phase
Three
HP
3/4
RPM Range
1,101-1,200
No. of Speeds
1
Voltage
200V AC to 230V AC, 460V AC
Motor Shaft Rotation
CW/CCW
Frame
48Y
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Band
Motor Mounting Position
Vertical Shaft Up
Motor Thermal Protection
Auto
Max. Ambient Temp.
70 Degrees C
Nameplate RPM
1,140
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 200V AC to 230V AC, 200V AC
Motor Service Factor
1
Duty
Continuous
Full Load Amps
4.0/2.0 A
Standards
CSA Certified, UL Recognized
Hz
60 Hz
Motor Shaft Design
Keyed
Ins. Class
F
Motor Bearings
Ball
Features
Belly Band, Thermally Protected, Vertical Shaft Up
Duty Cycle
Continuous
Motor Frame Material
Steel
Usable @ 200V
Usable at 200V
Weight
24 lb
Conduit Box Location
Exterior
Output Watts
560 W
Conduit Box Position
F1
Removable Base
Yes
Usable @ 208V
Usable at 208V
Mounting
Band
Drive Type
Direct Drive
Motor Enclosure Type
Open Air Over
Frequency
60 Hz
Includes
Rain Shield, Removable Base
Wattage
560 W
Ambient Temperature - Maximum
70 Degrees C
Application
Condenser Fan
Mounting Position
Vertical Shaft Up
Efficiency Rating
Standard Efficiency (IE1)
Number of Speeds
1
Product Type
Condenser Fan Motor
Bearing Type
Ball
Shaft Design
Keyed
Insulation Class
F
Sub Application
Condenser Fan
Nameplate Service Factor @ 60 Hz
1
Full Load Current @ 60 Hz
4.0/2.0 A
Frame Material
Steel

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 200-230/460V AC, 4.0/2.0 A Full Load Amps, 48Y Frame, Output Watts 560 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Belly Band
