Shop LEESON

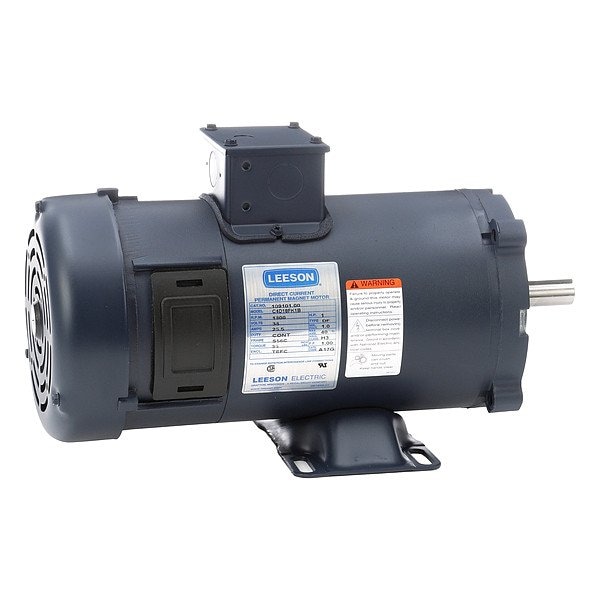

DC Permanent Magnet Motor, 56C

  • Mfr # 109101.00

  • Zoro # G012192028

product price:
$
963.99
/ea
Free Shipping & Returns

Key Features

HP
1
Voltage
36V DC
Nameplate RPM
1,800 RPM
Shaft Dia.
5/8 in
Frame
S56C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
109101.00
Zoro #
G012192028
UPC #
691720347430
Country of Origin
United States
Item
DC Permanent Magnet Motor
HP
1
Voltage
36V DC
Nameplate RPM
1,800 RPM
Frame
S56C
Full Load Amps
25.5 A
RPM Range
1,701-1,800
Motor Thermal Protection
None
Motor Shaft Rotation
CW/CCW
Max. Ambient Temp.
104 Degrees F
Motor Service Factor
1
Voltage Compatibility
36V DC
Nominal Efficiency
82.8 %
Motor Application
General Purpose
Motor Mounting Type
Rigid Base
Motor Shaft Design
Keyed
Removable Base
Yes
Weight
37 lb
Motor Sub Application
General Purpose
Standards
CSA Certified, UL Listed
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Ins. Class
H
Duty Cycle
Continuous
Motor Design
Permanent Magnet
Insulation Class
H
Nameplate Voltage
36V DC
Shaft Design
Keyed
Application
General Purpose
Ambient Temperature - Maximum
104 Degrees F
Full Load Current
25.5 A
Motor Enclosure Type
Totally Enclosed Fan Cooled
Product Type
DC Motor
Nameplate Service Factor
1
Includes
Removable Base

Description

DC Permanent Magnet Motor, Not Applicable Phase, Motor Design Permanent Magnet DC, 1 HP, Nameplate RPM 1,800, 25.5 A Full Load Amps, S56C Frame, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Removable Base Yes, Shaft Dia. 5/8 in, Shaft Length 2 1/16 in, Motor Shaft Design Keyed, Overall Length 13 13/16 in
