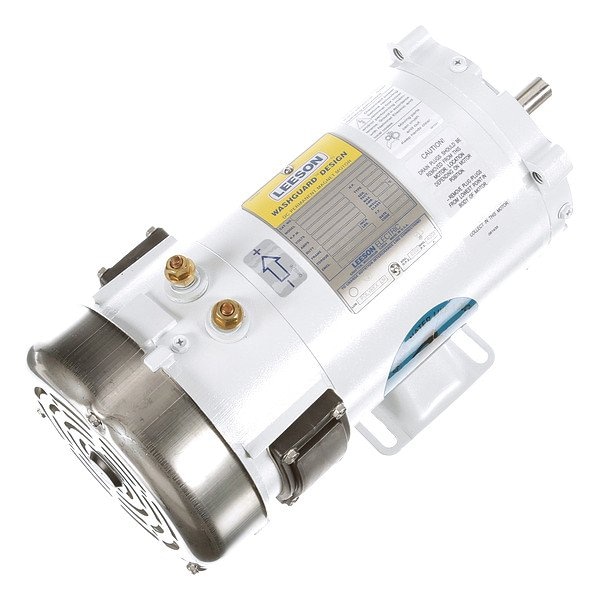

DC Permanent Magnet Motor, 56C
Mfr # 109300.00
Zoro # G111929570
product price:Â
$
1,201.99
/ea
Free Shipping & Returns
Key Features
HP
3/4
Nameplate RPM
1,800 RPM
Shaft Dia.
5/8 in
Voltage
12V DC
Frame
S56C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 109300.00
- Zoro #
- G111929570
- UPC #
- 691720100219
- Country of Origin
- United States
Dimensions
- Shaft Dia.
- 5/8 in
- Overall Length
- 13 5/16 in
- Length Less Shaft
- 11 1/4 in
- Shaft Length
- 2 1/16 in
- Bolt Circle Dia.
- 5 7/8 in
- Stud Size
- 3/8"-16
- Mounting Stud Thread Size
- 3/8"-16
- Wire Rope Length
- 13 5/16 in
- Shaft Diameter
- 5/8 in
- Frame Size
- 56C
- Bolt Circle Diameter
- 5 7/8 in
- Length
- 13 5/16 in
Description
DC Permanent Magnet Motor, Not Applicable Phase, Motor Design Permanent Magnet, 3/4 HP, Nameplate RPM 1,800 RPM, Voltage 12V DC, 58.0 A Full Load Amps, S56C Frame, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Removable Base Yes, Shaft Dia. 5/8 in, Shaft Length 2 1/16 in, Motor Shaft Design Keyed
