Shop AMETEK

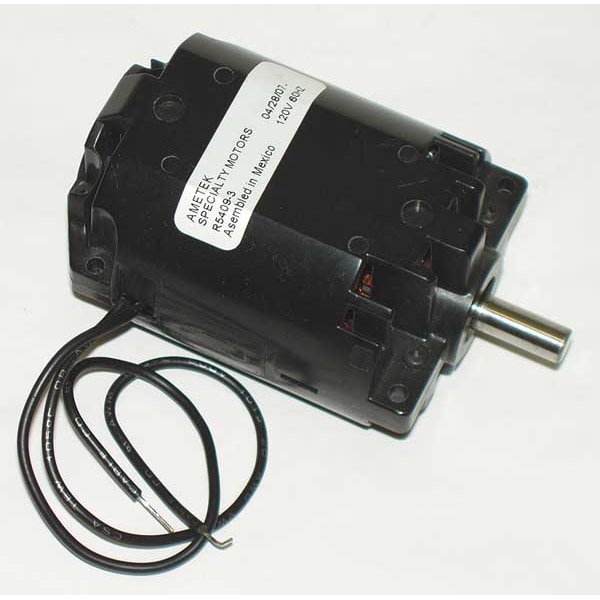

Universal AC/DC Mtr, 1/4hp, 20,000rpm, 120V

  • Mfr # 5409-3-2
  • Zoro # G0560603
product price:
$
45.45
/ea

Key Features

HP
1/4
Nameplate RPM
20,000 RPM
Shaft Dia.
5/16 in
O.C. Mounting
2 1/4 in
Mounting Holes
(2) #8-32
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
5409-3-2
Zoro #
G0560603
UPC #
-
Country of Origin
China
HP
1/4
Nameplate RPM
20,000 RPM
O.C. Mounting
2 1/4 in
Mounting Holes
(2) #8-32
Item
Universal AC/DC Motor
Voltage
115V AC
Frame
Non-Standard
Motor Design
Universal AC/DC
Motor Enclosure Design
Open
Max. Ambient Temp.
40 Degrees C
Motor Mounting Position
All Angle
Housing Material
Thermoset Plastic
Standards
CSA Certified (LR31393), UL Listed (E47185)
Motor Bearings
Ball
Phase
Single
Finish
Enamel
Motor Shaft Rotation
CCWSE
Average Brush Life
200 hr
RPM Range
Over 3,600
Input Watts
480 W
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Thermal Protection
One-Shot
Ins. Class
A
Application
General Purpose
Motor Service Factor
1
Motor Mounting Type
Hole
Hz
60 Hz
Motor Application
Universal AC/DC Motor
Weight
1 7/10 lb
Usable @ 208V
Not Usable at 208V
Motor Shaft Design
Round
No. of Speeds
1
Usable @ 200V
Not Usable at 200V
Frame Finish
Enamel-Coated
Mounting Position
All Angle
Motor Enclosure Type
Open
Nameplate Voltage
115V AC
Product Type
Universal AC/DC Motor
Insulation Class
A
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Round
Nameplate Service Factor
1
Bearing Type
Ball
Number of Speeds
1

Description

Universal AC/DC Motor, Single Phase, Motor Design Universal AC/DC, 1/4 HP, Nameplate RPM 20,000, No. of Speeds 1, 115V AC Voltage, Non-Standard Frame, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection One-Shot, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open, Motor Mounting Type Hole, Motor Mounting Position All Angle, Finish Enamel, Shaft Dia. 5/16 in, Shaft Length 7/8 in, Motor Shaft Design Round
