Leeson

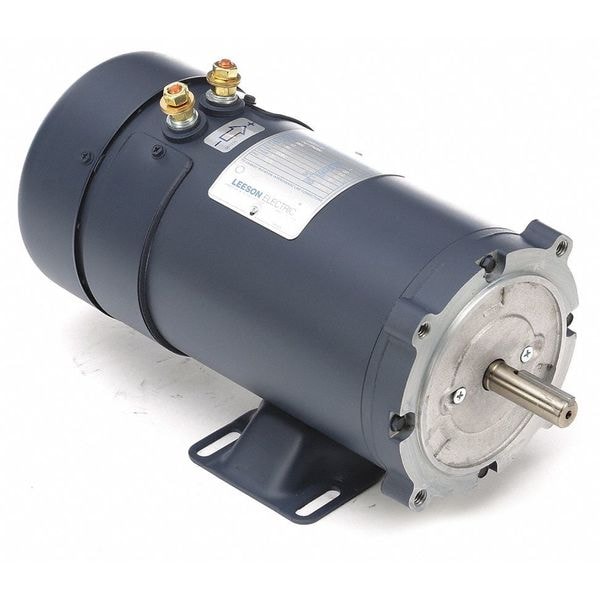

DC Permanent Magnet Motor, 80.0A, 12VDC
- Zoro #: G4608829
- Mfr #: 108322.00
Tap to zoom
Hover or click to zoom
This item ships free.
(Sign in or create an account for free shipping on orders over $50)
Total: $842.12
Leeson #108322.00 Specifications
- Zoro #: G4608829
- Mfr #: 108322.00
- Item: DC Permanent Magnet Motor
- HP: 1
- Voltage: 12V DC
- Nameplate RPM: 1,800
- Shaft Dia.: 5/8 in
- Frame: 56C
- Full Load Amps: 80.0 A
- RPM Range: 1,701-1,800
- Motor Thermal Protection: None
- Body Dia.: 5 39/64 in
- Motor Enclosure Design: Totally Enclosed Fan-Cooled
- Shaft Length: 1 7/8 in
- Length Less Shaft: 11 7/8 in
- Features: Removable Base, Rugged Die Cast Endshields with Steel Bearing Inserts
- Full Load Torque: 35 in-lb
- Ins. Class: H
- Rotation: CW/CCW
- Overall Length: 13 13/16 in
- Motor Application: General Application
- RPM Group: 1701-1800
- Max. Ambient Temp.: 40 Degrees C
- Voltage Compatibility: 12V DC
- Standards: CSA (LR2025), UL (E49747)
- Brush Type: Carbon
- Bearings: Ball
- Motor Mounting Type: Face/Base
- Motor Design: Permanent Magnet DC
- Stud Quantity: 4
- Removable Base: Yes
- Motor Shaft Design: Keyed
- Motor Shaft Rotation: CW/CCW
- Stud Size: 3/8"-16
- Weight: 35 lb
- Motor Bearings: Ball
- Duty Cycle: Continuous
- Motor Service Factor: 1
- Country of Origin (subject to change): United States
Description
DC Permanent Magnet Motor, Motor Design Permanent Magnet DC, 1 HP, Nameplate RPM 1,800, Voltage 12V DC, 80.0 A Full Load Amps, 56C Frame, Full Load Torque 35 in-lb, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face, Base, Removable Base Yes, Shaft Dia. 5/8 in, Motor Bearings Ball, Shaft Length 1 7/8 in
Restrictions and Compliance
- Hazardous material
