Three-Phase General Purpose Motor, 1 HP, 56 Frame, 230/460V AC Voltage, 3,450 Nameplate RPM

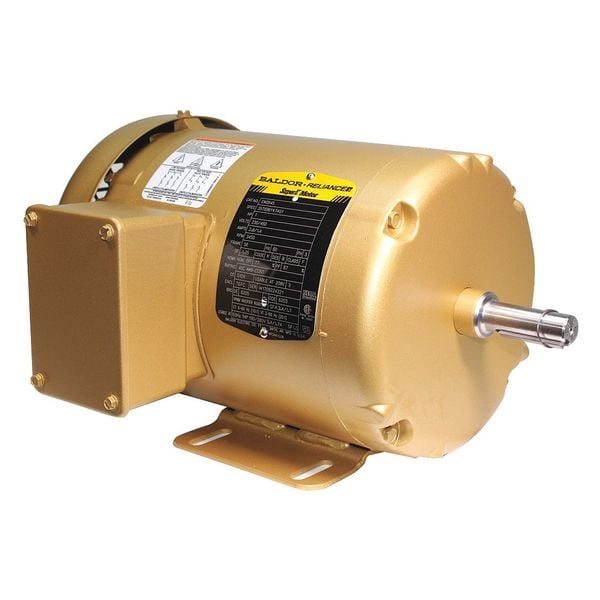

The BALDOR-RELIANCE - EM3545 is a 3-phase AC General Purpose Motor, widely used in industrial and commercial settings for power transmission and pneumatics applications. This versatile motor converts electrical energy into mechanical energy to operate various types of machinery across different sectors, from manufacturing lines to HVAC systems.

Key Features of the BALDOR-RELIANCE - EM3545 General Purpose Motor:

• CC Number: The unique identifier CC031A assigned by EASA classifies this motor based on its design, specifications, and performance characteristics.
• Duty Cycle: This motor is designed for a continuous duty cycle in accordance with its specifications.
• Frame: A size 56 frame houses and supports the internal parts of the motor conforming to standard specifications for compatibility and interchangeability.
• Full Load Amps: The motor draws a maximum current of 2.8/1.4 A when operating at full load as per its design specifications.
• Green Certification or Other Recognition: The motor has received the NEMA Premium(R) Rating, which indicates that it meets specified environmental and energy efficiency standards.
• HP: The motor has been assigned a horsepower (HP) rating of 1 based on manufacturer's tests under specific conditions

Please note that other important features include its Hz frequency which influences speed & performance; Insulation Class F denoting temperature resilience; Steel Frame Material contributing towards durability & heat resistance; All Angle Mounting Position allows for varied mounting options; Rigid Base Mounting Type intended for use on stable surfaces within the product's design parameters.; Keyed Shaft Design compatible with various drive components like pulleys or gears etc., among others.
