Shop LEESON

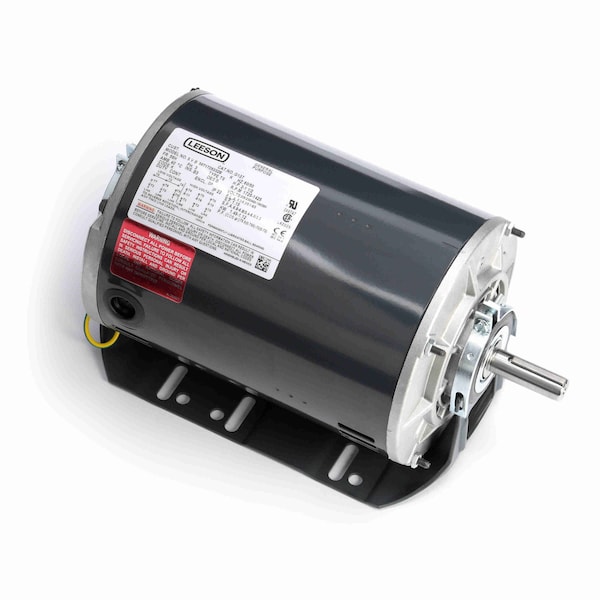

Direct Drive Blower Motor

  • Mfr # 056T17D5332

  • Zoro # G112219328

product price:  $576.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
1 1/2, 2
RPM Range
1,701-1,800
Nameplate RPM
1,725/1,425
Voltage
208 to 230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
056T17D5332
Zoro #
G112219328
UPC #
722856040718
Country of Origin
Mexico

Dimensions

Body Dia.
6 1/2 in
Overall Length
12 11/32 in
Shaft Dia.
5/8 in
Shaft Length
1 29/32 in
Length Less Shaft
10 7/16 in
Body Diameter
6.5 in
Shaft Diameter
5/8 in
Frame Size
56H

Details

Item
Fan and Blower Motor
Motor Design
Three-Phase
HP
1 1/2, 2
RPM Range
1,701-1,800
Nameplate RPM
1,725/1,425
Voltage
208 to 230/460V AC
Frame
56H
Motor Mounting Type
Resilient Base
Phase
Three
Motor Enclosure Design
Open Dripproof
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Hz
50/60 Hz
Motor Shaft Rotation
CW/CCW
Motor Bearings
Ball
Motor Service Factor
1.15
Standards
CE, CSA, UL
Nominal Efficiency
81.5 %
Full Load Amps
3.10 A
Duty
Continuous
Motor Mounting Position
Horizontal
No. of Speeds
1
Motor Application
Blower; Fan
Voltage Compatibility
190V AC, 208V AC, 230V AC, 380V AC, 460V AC
Motor Thermal Protection
None
Motor Shaft Design
Keyed
Bearing Type
Ball
Usable @ 208V
Usable at 208V
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C
Wattage
1.5 kW
Weight
34 lb
Frequency
60/50 Hz
Full Load Current @ 50 Hz
3.1 A
Mounting Position
Horizontal
Sub Application
General Purpose
Application
Fan/Blower
Nameplate RPM @ 50 Hz
1,725/1,425 RPM
Number of Speeds
1
Shaft Design
Keyed
Nameplate Voltage @ 50 Hz
208-230/460V AC
Motor Enclosure Type
Open Drip Proof
Capacitor Required
Capacitor Not Required
Nameplate Service Factor @ 50 Hz
1.15
Frame Material
Steel
Drive Type
Belt Drive
Full Load Current @ 60 Hz
3.1 A
Nameplate Service Factor @ 60 Hz
1.15
Product Type
Fan and Blower Motor

Description

Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp, 2 hp HP, Nameplate RPM 1,725/1,425 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 3.1 A Full Load Amps, 56H Frame, Output Watts 1.5 kW, 60/50 Hz Hz, Usable @ 208V Usable at 208V, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base
