  6. Farm Duty Motor, Capacitor-Start, 1 HP, 115/230V AC, 1,725 Nameplate RPM, 56C Frame
No Product Image Available

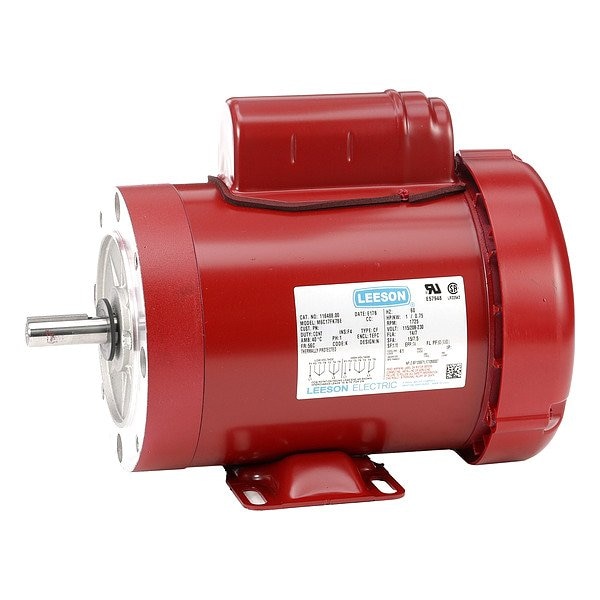

Farm Duty Motor, Capacitor-Start, 1 HP, 115/230V AC, 1,725 Nameplate RPM, 56C Frame

  • Mfr # 116488.00

  • Zoro # G411931105

product price:  $1,048.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Phase
Single
HP
1
RPM Range
1,701-1,800
Voltage
115/230V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
116488.00
Zoro #
G411931105
UPC #
691720328767
Country of Origin
United States

Dimensions

Shaft Length
1 7/8 in
Length Less Shaft
10 1/8 in
Bolt Circle Dia.
5 11/16 in
Overall Length
12 in
Shaft Dia.
5/8 in

Details

Item
Farm Duty Motor
Motor Design
Capacitor-Start
Phase
Single
HP
1
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
56C
Motor Service Factor
1
Motor Thermal Protection
Manual
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Nameplate RPM
1,725
Motor Application
Farm Duty
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Sub Application
General Purpose
Motor Shaft Design
Keyed
Motor Shaft Rotation
CCW
Standards
CSA Certified, UL Listed
Ins. Class
F
Nominal Efficiency
74 %
Item - Farm Duty Motors
Agricultural Fan Motor
No. of Speeds
1
Motor Bearings
Ball
Voltage Compatibility
115V AC, 230V AC
Weight
32 lb
Duty Cycle
Continuous
Full Load Amps
14/7 A
Usable @ 200V
No
Finish
Powder Coated
Usable @ 208V
Yes
Hz
60 Hz
Max. Ambient Temp.
104 Degrees F
Capacitor Required
Yes
Extended Thru-Bolts
No

Description

Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 14/7 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base
