  6. Farm Duty Motor, Capacitor-Start, 1/2 HP, 115/230V AC, 1,725 Nameplate RPM, 56C Frame
No Product Image Available

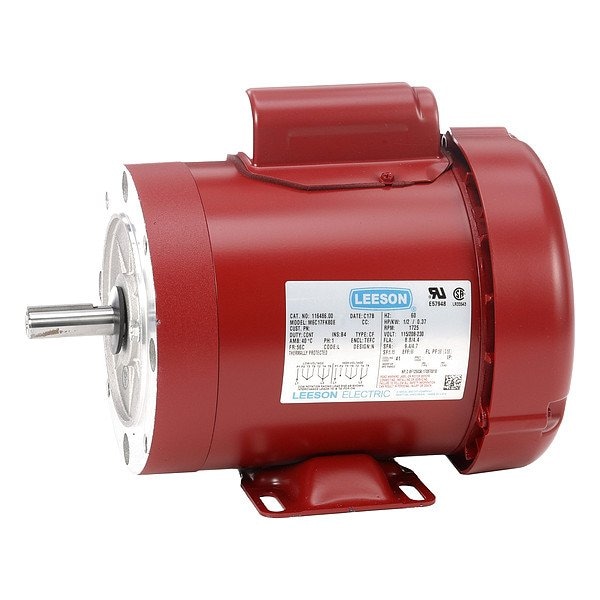

Farm Duty Motor, Capacitor-Start, 1/2 HP, 115/230V AC, 1,725 Nameplate RPM, 56C Frame

  • Mfr # 116486.00

  • Zoro # G911931018

product price:  $844.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Phase
Single
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
56C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
116486.00
Zoro #
G911931018
UPC #
691720328743
Country of Origin
United States

Dimensions

Length Less Shaft
9 1/8 in
Shaft Length
1 7/8 in
Overall Length
11 in
Bolt Circle Dia.
5 11/16 in
Shaft Dia.
5/8 in

Details

Item
Farm Duty Motor
Motor Design
Capacitor-Start
Phase
Single
HP
1/2
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
56C
Motor Service Factor
1.15
Motor Thermal Protection
Manual
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Nameplate RPM
1,725
Motor Application
Farm Duty
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Sub Application
General Purpose
Motor Shaft Design
Keyed
Motor Shaft Rotation
CCW
Standards
CSA Certified, UL Listed
Full Load Amps
8.8/4.4 A
Item - Farm Duty Motors
General Purpose Farm Duty Motor
Ins. Class
B
Nominal Efficiency
66 %
Voltage Compatibility
115V AC, 230V AC
No. of Speeds
1
Capacitor Required
Yes
Motor Bearings
Ball
Usable @ 208V
Yes
Max. Ambient Temp.
104 Degrees F
Finish
Powder Coated
Weight
24 lb
Usable @ 200V
No
Duty Cycle
Continuous
Hz
60 Hz
Extended Thru-Bolts
No

Description

Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 8.8/4.4 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base
