  6. Farm Duty Motor, Capacitor-Start, 1/3 HP, 115/208-230V AC, 1,725 Nameplate RPM, 56 Frame

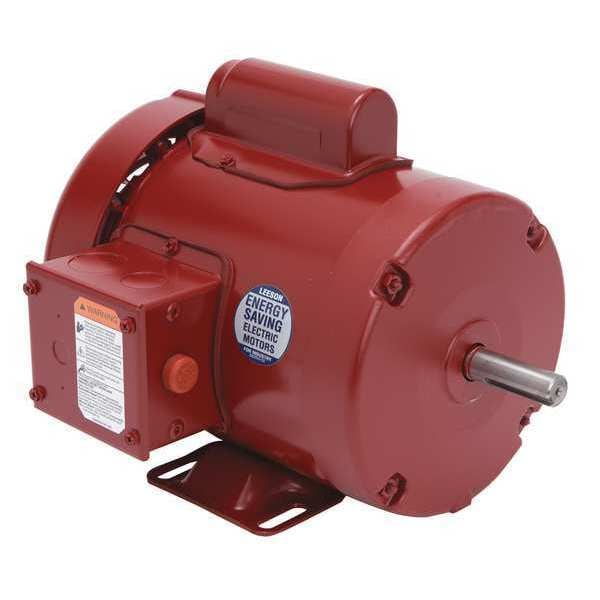

Leeson Farm Duty Motor, Capacitor-Start, 1/3 HP, 115/208-230V AC, 1,725 Nameplate RPM, 56 Frame 113256.00 - main

Farm Duty Motor, Capacitor-Start, 1/3 HP, 115/208-230V AC, 1,725 Nameplate RPM, 56 Frame

  • Mfr # 113256.00

  • Zoro # G4608497

product price:  $290.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Phase
Single
RPM Range
1,701-1,800
Voltage
115/208-230V AC
Frame
56
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
113256.00
Zoro #
G4608497
UPC #
691720011874
Country of Origin
United States

Dimensions

Overall Length
10 1/2 in
Length Less Shaft
8 5/8 in
Shaft Length
1 7/8 in
Shaft Dia.
5/8 in
Manufacturers Warranty Length
1 yr

Details

Item
Farm Duty Motor
Motor Design
Capacitor-Start
Phase
Single
HP
1/3
RPM Range
1,701-1,800
Voltage
115/208-230V AC
Frame
56
Motor Service Factor
1.15
Motor Thermal Protection
Manual
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Nameplate RPM
1,725
Motor Application
Farm Duty
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Sub Application
High Torque
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Standards
CSA (LR2025), UL (E49747)
Duty
Continuous
Item - Farm Duty Motors
Farm Duty Motor
Max. Ambient Temperature
40 Degrees C
Motor Bearings
Ball
Nominal Efficiency
62 %
Motor Efficiency Group
Standard Efficient
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Full Load Amps
6.4/3.4-3.2 A
Ins. Class
B
Frame Material
Rolled steel
Finish
Enamel
Hz
60 Hz
Includes
Gasketed Conduit Box, Shaft Slinger
Max. Ambient Temp.
40 Degrees C
Duty Cycle
Continuous
Usable @ 208V
Yes
No. of Speeds
1
Weight
23 lb
Usable @ 200V
No

Description

Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 6.4/3.4-3.2 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base
