  6. Feather Picker Motor, 3-Phase, 3 HP, 208-230/460V AC, 1,740 Nameplate RPM, 145T Frame

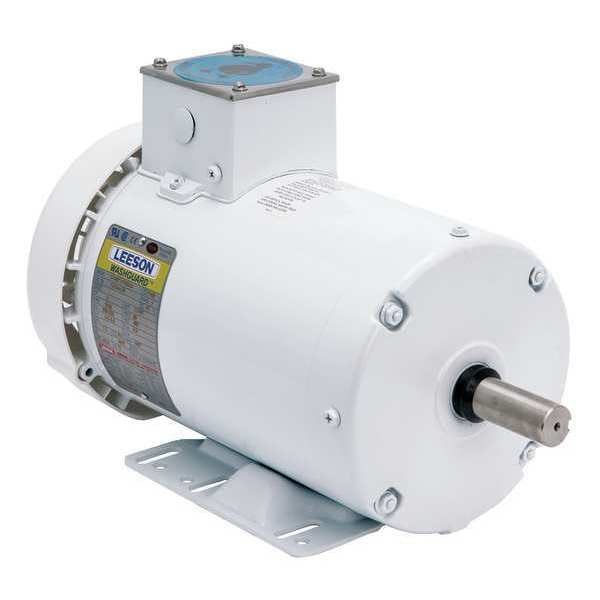

Leeson Feather Picker Motor, 3-Phase, 3 HP, 208-230/460V AC, 1,740 Nameplate RPM, 145T Frame 121944.00 - main

Feather Picker Motor, 3-Phase, 3 HP, 208-230/460V AC, 1,740 Nameplate RPM, 145T Frame

  • Mfr # 121944.00

  • Zoro # G4608871

product price:  $804.29
/ea
Free Shipping & Returns

Key Features

Motor Design
3-Phase
Phase
Three
HP
3
RPM Range
1,701-1,800
Voltage
208-230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
121944.00
Zoro #
G4608871
UPC #
691720211953
Country of Origin
Mexico

Dimensions

Overall Length
13 3/4 in
Shaft Dia.
7/8 in
Length Less Shaft
11 1/2 in
Shaft Length
2 1/4 in
Manufacturers Warranty Length
1 yr

Details

Item
Feather Picker Motor
Motor Design
3-Phase
Phase
Three
HP
3
RPM Range
1,701-1,800
Voltage
208-230/460V AC
Frame
145T
Motor Service Factor
1
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Nameplate RPM
1,740
Motor Application
Farm Duty
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Shaft Design
Keyed
Motor Sub Application
Hatchery
Motor Shaft Rotation
CW/CCW
Standards
CSA (LR2025), UL (E49747)
Nominal Efficiency
82.5 %
Ins. Class
F
Full Load Amps
8.9-8.6/4.3 A
Motor Bearings
Ball
Frame Material
Rolled steel
Includes
Gasketed Conduit Box, Shaft Slinger
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Item - Farm Duty Motors
Feather Picker Motor
Duty
Continuous
Hz
60 Hz
No. of Speeds
1
Max. Ambient Temp.
40 Degrees C
Duty Cycle
Continuous
Usable @ 200V
No
Weight
46 lb
Usable @ 208V
Yes
Application
Washdown Feather Picker Motor
Inverter Rated
No

Description

Farm Duty Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 1,740 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 8.9-8.6/4.3 A, 145T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base
