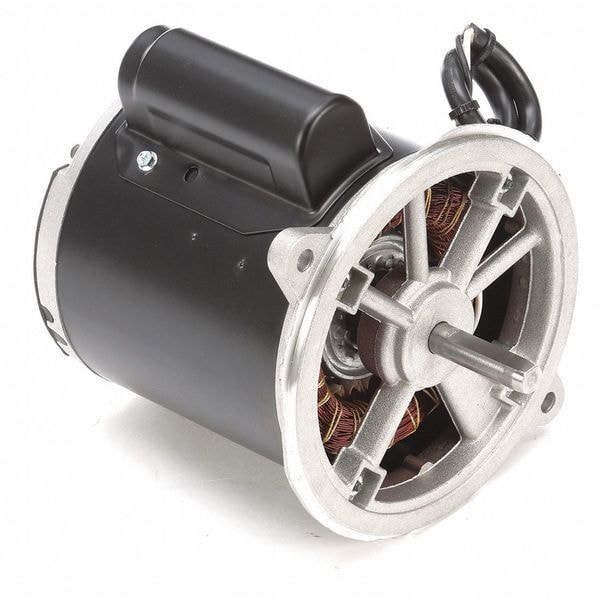

Oil Burner Motor, 1/5 hp

  • Mfr # 048C34S24
  • Zoro # G4780568
product price:
$
210.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Motor Enclosure Design
Open Air-Over
HP
1/5
Nameplate RPM
3,450
Frame
48N
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
048C34S24
Zoro #
G4780568
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Body Dia.
6 3/4 in
Shaft Length
1 3/4 in
Manufacturers Warranty Length
1 yr
Overall Length
8 3/8 in
Length Less Shaft
6 5/8 in
Lead Length
10 in
Body Diameter
6.8 in
Shaft Diameter
1/2 in
Frame Size
48N
Wire Rope Length
8 3/8 in
Length
8 3/8 in

Details

Item
Oil Burner Motor
Motor Design
Capacitor-Start
Motor Enclosure Design
Open Air-Over
HP
1/5
Nameplate RPM
3,450
Frame
48N
Voltage
115/230V AC
Motor Mounting Type
Face
Motor Shaft Rotation
CW/CCW
Motor Application
HVAC/R
Full Load Amps
3.0/1.5 A
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Bearings
Ball
Motor Shaft Design
Flat
RPM Range
3,001-3,600
Motor Service Factor
1
Max. Ambient Temp.
40 Degrees C
Ins. Class
B
Motor Sub Application
Oil Burner
Motor Thermal Protection
Manual
Ambient Temperature
40 Degrees C
Standards
CSA Certified, UL Recognized
Motor Flange Material
Aluminum
Hz
60 Hz
Motor Flange Type
Ventilated
Phase
Single
Features
NEMA N or M Flange Direct, Two Bolt
Duty Cycle
Continuous
Capacitor Required
Capacitor Included
Motor Mounting Position
Horizontal or Vertical Shaft Up
Motor Frame Material
Steel
Removable Base
No
Usable @ 208V
Usable at 208V
Nominal Efficiency
61 %
Usable @ 200V
Usable at 200V
No. of Speeds
1
Output Watts
150 W
Weight
14 lb
Conduit Box Position
F1
Conduit Box Location
Exterior
Frame Material
Steel
Wattage
150 W
Ambient Temperature - Maximum
40 Degrees C
Manufacturers Warranty
1 yr
Bearing Type
Ball
Frequency
60 Hz
Drive Type
Direct Drive
Flange Type
Ventilated
Nameplate Service Factor @ 60 Hz
1
Insulation Class
B
Full Load Current @ 60 Hz
3.0/1.5 A
Number of Speeds
1
Duty
Continuous
Mounting Position
Horizontal
Product Type
Oil Burner Motor
Application
Oil Burner
Sub Application
Oil Burner
Shaft Design
Flat
Motor Enclosure Type
Open Drip Proof

Description

HVAC Motor, Single Phase, Motor Design Capacitor-Start, 1/5 HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 115/230V AC, 3.0/1.5 A Full Load Amps, 48N Frame, Output Watts 150 W, 60 Hz Hz, Usable @ 208V Yes, Usable @ 200V Yes, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air-Over, Motor Mounting Type Face, Motor Frame Material Steel
