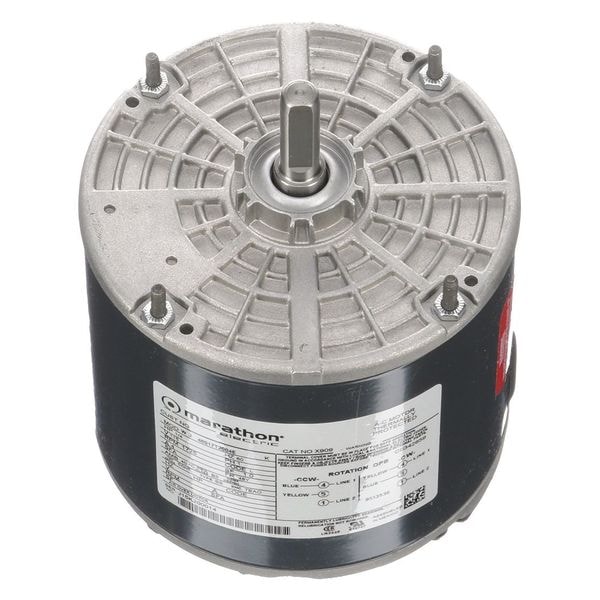

General Purpose Farm Duty Motor, Split-Phase, 1/4 HP, 115V AC, 1,725 Nameplate RPM, 48Y Frame
Mfr # 048S17T2004
Zoro # G7459024
product price: $126.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Split-Phase
Phase
Single
HP
1/4
RPM Range
1,701-1,800
Voltage
115V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
048S17T2004
Zoro #
G7459024
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Dia.
1/2 in
Length Less Shaft
6 1/16 in
Shaft Length
1 1/2 in
Overall Length
7 5/8 in
Stud Size
#10-32
Description
Farm Duty Motor, Single Phase, Motor Design Split-Phase, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, Full Load Amps 4 A, 48Y Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
