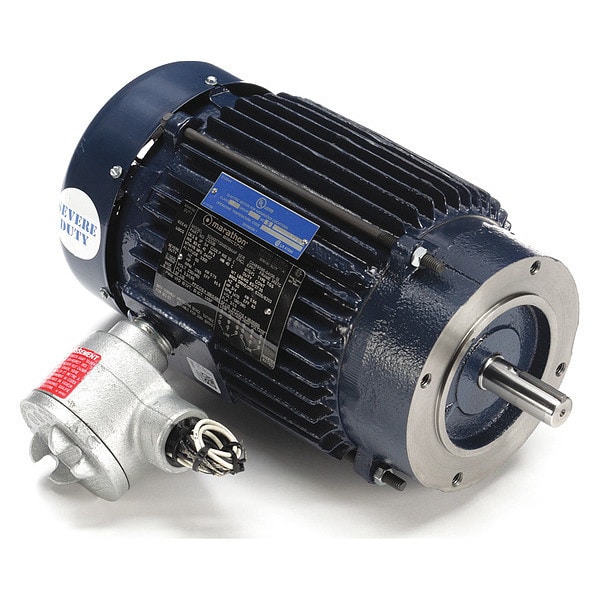

Hazardous Location Motor, 1 HP, 3.3/1.6A

  • Mfr # 143TTGN16539
  • Zoro # G7409011
product price:
$
861.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1 hp
RPM Range
1,701-1,800
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
143TTGN16539
Zoro #
G7409011
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
15 3/16 in
Length Less Shaft
13 1/16 in
Lead Length
12 in
Shaft Length
2 1/8 in
Shaft Dia.
7/8 in
Wire Rope Length
15 3/16 in
Shaft Diameter
7/8 in
Frame Size
143TC
Length
15 3/16 in

Details

Motor Design
Three-Phase
Phase
Three
HP
1 hp
RPM Range
1,701-1,800
Voltage
230V AC, 460V AC
Frame
143TC
Hazardous Location Class
Class I, Class II
Motor Thermal Protection
T-Stat
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face
Frame Material
Cast Iron
Standards
CSA Certified, UL Listed
Motor Application
Hazardous Location
Nominal Efficiency
85.5 %
Motor Shaft Rotation
CW/CCW
Full Load Amps
3.3/1.7 A
Temp. Code
T3B
CC Number
CC003A
Duty
Continuous
Motor Shaft Design
Keyed
Nameplate RPM
1,765 RPM
Hz
60 Hz
Item
Hazardous Location Motor
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Max. Ambient Temp.
40 Degrees C
Motor Efficiency Group
NEMA Premium Efficient
Motor Bearings
Ball
NEMA Design
B
Ins. Class
B
Motor Service Factor
1.15
Motor Frame Material
Cast Iron
Green Certification or Other Recognition
NEMA Premium(R) Rated
Conduit Box Location
Exterior
Hazardous Location Division
Division I
Weight
83 lb
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Motor Mounting Position
Horizontal
No. of Speeds
1
Duty Cycle
Continuous
Hazardous Location Group
Group D, Group F, Group G
Mounting Position
Horizontal
Product Type
Hazardous Location Motor
Motor Enclosure Type
Totally Enclosed Fan Cooled
Insulation Class
B
Temperature Code
T3B
Full Load Current @ 60 Hz
3.3/1.7 A
Shaft Design
Keyed
Number of Speeds
1
Nameplate Service Factor @ 60 Hz
1.15
Application
Hazardous Location
NEMA Design Class
B
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Efficiency Rating
Premium Efficiency (IE3)
Bearing Type
Ball

Description

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,765 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 3.3/1.7 A, 143TC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
