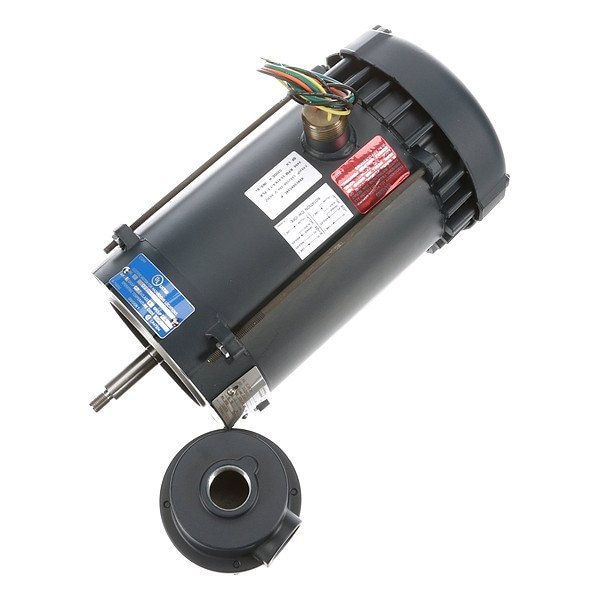

HazardousLocationMotor, 1-1/2hp, 3450RPM

  • Mfr # 116183.00

  • Zoro # G611935569

product price:
$
1,121.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Phase
Single
HP
1 1/2 hp
RPM Range
3,001-3,600
Voltage
115/208-230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
116183.00
Zoro #
G611935569
UPC #
691720255964
Country of Origin
Mexico

Dimensions

Lead Length
5 in
Overall Length
14 15/16 in
Shaft Length
2 9/16 in
Length Less Shaft
12 1/2 in
Shaft Dia.
5/8 in
Wire Rope Length
14 15/16 in
Shaft Diameter
5/8 in
Frame Size
56J
Length
14 15/16 in

Details

Motor Design
Capacitor-Start
Phase
Single
HP
1 1/2 hp
RPM Range
3,001-3,600
Voltage
115/208-230V AC
Frame
56J
Hazardous Location Class
Class I, Class II
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face
Max. Ambient Temp.
40 Degrees C
Item
Hazardous Location Motor
Motor Bearings
Ball
Hazardous Location Division
Division I
Voltage Compatibility
115V AC, 208V AC, 230V AC
Motor Service Factor
1
Weight
40 lb
Standards
CSA Certified, UL Listed
No. of Speeds
1
Hz
60 Hz
Nominal Efficiency
77 %
Full Load Amps
7.7 A
Nameplate RPM
3,450 RPM
Ins. Class
B
Motor Shaft Rotation
CCWSE
Motor Frame Material
Steel
Usable @ 208V
Usable at 208V
Motor Shaft Design
Threaded
Motor Mounting Position
Horizontal
Includes
Explosion Proof Conduit Box
NEMA Design
L
Temp. Code
T3B
Motor Application
Hazardous Location
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Hazardous Location Group
Group C, Group D, Group F, Group G
Motor Sub Application
Jet Pump
Temperature Code
T3B
Sub Application
Jet Pump
Product Type
Hazardous Location Motor
Number of Speeds
1
Frequency
60 Hz
NEMA Design Class
L
Shaft Design
Threaded
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1
Ambient Temperature - Maximum
40 Degrees C
Efficiency Rating
Standard Efficiency (IE1)
Insulation Class
B
Full Load Current @ 60 Hz
7.7 A
Frame Material
Steel
Application
Hazardous Location
Mounting Position
Horizontal
Motor Enclosure Type
Totally Enclosed Fan Cooled

Description

Hazardous Location Motor, Single Phase, Motor Design Capacitor-Start, 1 1/2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 7.7 A, 56J Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
