Shop LEESON

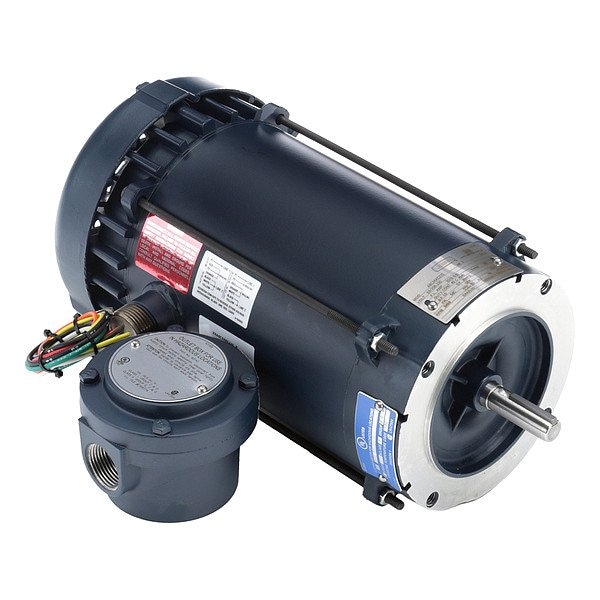

HazardousLocationMotor, 2hp, 3450RPM

  • Mfr # 114425.00

  • Zoro # G911935573

product price:  $1,198.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Phase
Single
HP
2 hp
RPM Range
3,001-3,600
Voltage
115/208-230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
114425.00
Zoro #
G911935573
UPC #
691720013953
Country of Origin
Mexico

Dimensions

Overall Length
14 15/16 in
Shaft Dia.
5/8 in
Lead Length
10 in
Length Less Shaft
13 1/16 in
Shaft Length
1 7/8 in
Shaft Diameter
5/8 in
Wire Rope Length
14 15/16 in
Frame Size
56C

Details

Motor Design
Capacitor-Start
Phase
Single
HP
2 hp
RPM Range
3,001-3,600
Voltage
115/208-230V AC
Frame
56C
Hazardous Location Class
Class I, Class II
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face
Ins. Class
B
Usable @ 208V
Usable at 208V
No. of Speeds
1
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Item
Hazardous Location Motor
Motor Application
Hazardous Location
Usable @ 200V
Not Usable at 200V
Motor Bearings
Ball
Nameplate RPM
3,450 RPM
Motor Service Factor
1
Includes
Explosion Proof Conduit Box
Nominal Efficiency
75.5 %
Voltage Compatibility
115V AC, 208V AC, 230V AC
Weight
42.2 lb
Standards
CSA Certified, UL Listed
Motor Shaft Rotation
CWSE
Motor Shaft Design
Keyed
Hazardous Location Division
Division I
Temp. Code
T3B
NEMA Design
L
Duty Cycle
Continuous
Max. Ambient Temp.
40 Degrees C
Hz
60 Hz
Full Load Amps
10.0 A
Hazardous Location Group
Group C, Group D, Group F, Group G
Ambient Temperature - Maximum
40 Degrees C
NEMA Design Class
L
Temperature Code
T3B
Application
Hazardous Location
Mounting Position
Horizontal
Full Load Current @ 60 Hz
10.0 A
Product Type
Hazardous Location Motor
Frequency
60 Hz
Shaft Design
Keyed
Number of Speeds
1
Motor Enclosure Type
Totally Enclosed Fan Cooled
Insulation Class
B
Efficiency Rating
Standard Efficiency (IE1)
Bearing Type
Ball
Frame Material
Steel
Nameplate Service Factor @ 60 Hz
1

Description

Hazardous Location Motor, Single Phase, Motor Design Capacitor-Start, 2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 10.0 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
