No Product Image Available
Shop LEESON

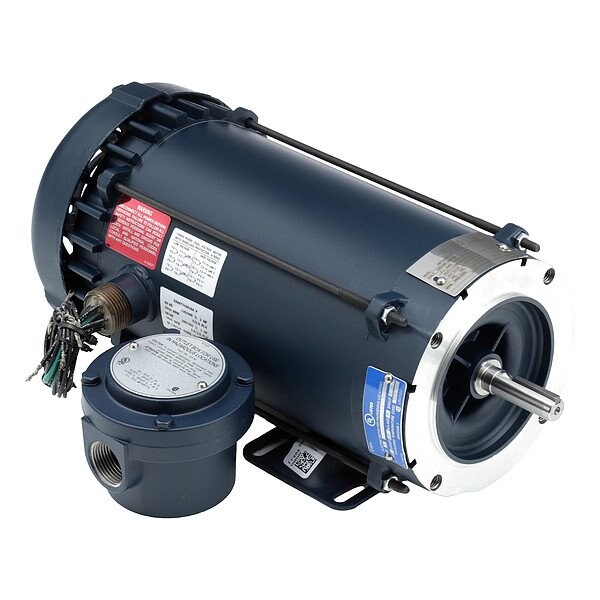

HazardousLocationMotor, 2hp, 3450RPM

  • Mfr # 119442.00

  • Zoro # G411935608

product price:  $1,136.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
2 hp
RPM Range
3,001-3,600
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
119442.00
Zoro #
G411935608
UPC #
691720047170
Country of Origin
Mexico

Dimensions

Shaft Length
1 7/8 in
Shaft Dia.
5/8 in
Lead Length
6 in
Length Less Shaft
14 9/16 in
Overall Length
16 7/16 in
Wire Rope Length
16 7/16 in
Frame Size
56C
Shaft Diameter
5/8 in

Details

Motor Design
Three-Phase
Phase
Three
HP
2 hp
RPM Range
3,001-3,600
Voltage
230V AC, 460V AC
Frame
56C
Hazardous Location Class
Class I, Class II
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face, Rigid Base
Motor Mounting Position
Horizontal
Motor Shaft Rotation
CW/CCW
Item
Hazardous Location Motor
HP @ 50Hz
2 hp
Motor Frame Material
Steel
Ins. Class
B
Conduit Box Location
Not available
NEMA Design
B
Usable @ 200V
Not Usable at 200V
Standards
CSA Certified, UL Listed
Usable @ 208V
Not Usable at 208V
Hazardous Location Division
Division I
Duty Cycle
Continuous
Voltage Compatibility
230V AC, 460V AC
Motor Bearings
Ball
Full Load Amps
2.5 A
Max. Ambient Temp.
40 Degrees C
Motor Service Factor
1
Voltage @ 50Hz
200/400V AC
Hz
60/50 Hz
RPM @ 50Hz
2,850 RPM
No. of Speeds
1
Nameplate RPM
3,450 RPM
Motor Shaft Design
Keyed
Includes
Explosion Proof Conduit Box
CC Number
Not Available
Temp. Code
T3B
Service Factor @ 50Hz
1
Nominal Efficiency
84 %
Full Load Amps @ 50Hz
2.5 A
Weight
67 lb
Motor Application
Hazardous Location
Hazardous Location Group
Group C, Group D, Group F, Group G
Insulation Class
B
Motor Enclosure Type
Totally Enclosed Fan Cooled
NEMA Design Class
B
Full Load Current @ 50 Hz
2.5 A
Temperature Code
T3B
Full Load Current @ 60 Hz
2.5 A
Shaft Design
Keyed
Frequency
60/50 Hz
Number of Speeds
1
Product Type
Hazardous Location Motor
Ambient Temperature - Maximum
40 Degrees C
Nameplate Horsepower @ 50 Hz
2 hp
Bearing Type
Ball
Frame Material
Steel
Application
Hazardous Location
Mounting Position
Horizontal
Nameplate Service Factor @ 50 Hz
1
Efficiency Rating
Premium Efficiency (IE3)
Nameplate RPM @ 50 Hz
2,850 RPM
Nameplate Service Factor @ 60 Hz
1

Description

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 2.5 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60/50 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
