Shop LEESON

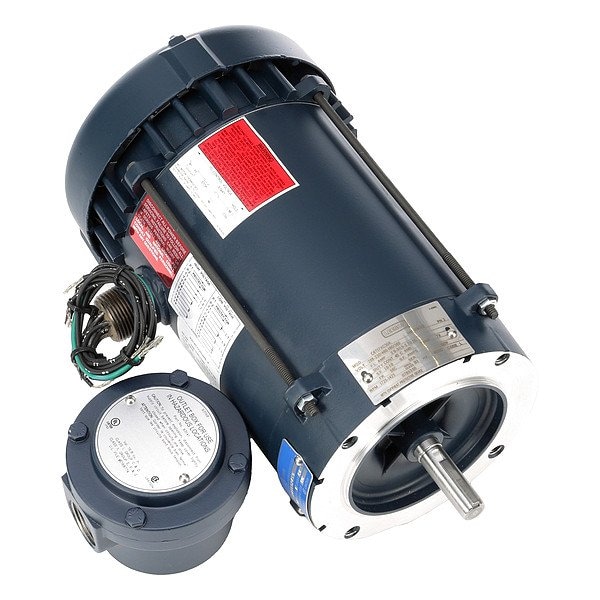

HazardousLocationMotor, 3/4hp, 1725RPM

  • Mfr # 117853.00

  • Zoro # G111935595

product price:  $1,111.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
3/4 hp
RPM Range
1,701-1,800
Voltage
208-230/460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
117853.00
Zoro #
G111935595
UPC #
691720003701
Country of Origin
Mexico

Dimensions

Overall Length
13 15/16 in
Length Less Shaft
12 1/16 in
Shaft Length
1 7/8 in
Lead Length
6 in
Shaft Dia.
5/8 in
Shaft Diameter
5/8 in
Wire Rope Length
13 15/16 in
Frame Size
56C

Details

Motor Design
Three-Phase
Phase
Three
HP
3/4 hp
RPM Range
1,701-1,800
Voltage
208-230/460V AC
Frame
56C
Hazardous Location Class
Class I, Class II
Motor Thermal Protection
T-Stat
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face
Item
Hazardous Location Motor
HP @ 50Hz
1/2 hp
Usable @ 208V
Usable at 208V
Nameplate RPM
1,725 RPM
CC Number
Not Available
Full Load Amps @ 50Hz
1.5 A
Voltage Compatibility
208V AC, 230V AC, 460V AC
NEMA Design
B
Motor Application
Hazardous Location
Motor Shaft Design
Keyed
Full Load Amps
1.5 A
Hz
60/50 Hz
No. of Speeds
1
Service Factor @ 50Hz
1
Motor Frame Material
Steel
Usable @ 200V
Not Usable at 200V
Hazardous Location Division
Division I
Motor Mounting Position
Horizontal
Motor Shaft Rotation
CW/CCW
Temp. Code
T3B
Ins. Class
B
RPM @ 50Hz
1,425 RPM
Standards
CSA Certified, UL Listed
Voltage @ 50Hz
190/380V AC
Conduit Box Location
Not available
Duty Cycle
Continuous
Max. Ambient Temp.
40 Degrees C
Nominal Efficiency
75 %
Motor Service Factor
1
Motor Bearings
Ball
Includes
Explosion Proof Conduit Box
Weight
35 lb
Hazardous Location Group
Group C, Group D, Group F, Group G
Ambient Temperature - Maximum
40 Degrees C
Temperature Code
T3B
Full Load Current @ 60 Hz
1.5 A
NEMA Design Class
B
Nameplate Horsepower @ 50 Hz
1/2 hp
Shaft Design
Keyed
Product Type
Hazardous Location Motor
Number of Speeds
1
Insulation Class
B
Application
Hazardous Location
Nameplate Service Factor @ 50 Hz
1
Frequency
60/50 Hz
Nameplate RPM @ 50 Hz
1,425 RPM
Efficiency Rating
Standard Efficiency (IE1)
Frame Material
Steel
Motor Enclosure Type
Totally Enclosed Fan Cooled
Bearing Type
Ball
Full Load Current @ 50 Hz
1.5 A
Mounting Position
Horizontal
Nameplate Service Factor @ 60 Hz
1

Description

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 1.5 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60/50 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
