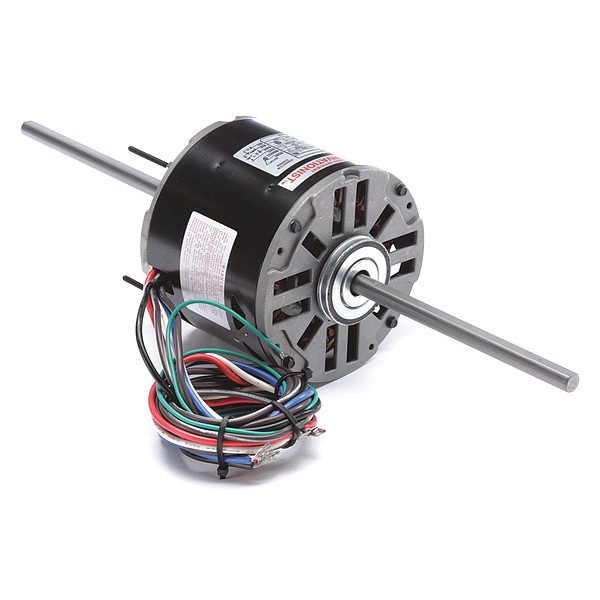

Room Air Cond Mtr, PSC, OAO, 1075 RPM
Mfr # RA1036
Zoro # G2892547
product price:Â $173.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Permanent Split Capacitor
HP
1/3
RPM Range
1,001-1,100
No. of Speeds
3
Voltage
208-230V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
RA1036
Zoro #
G2892547
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Dia.
1/2 in
Length Less Shaft
5 1/2 in
Stud Size
#8-32 x 1-5/8 in
Lead Length
35 in
Shaft Length
8 3/16 in
Resilient Ring Dia.
2 1/4 in
Bolt Circle Dia.
5 1/8 in
Body Dia.
5 5/8 in
Overall Length
20 in
Body Diameter
5.6 in
Shaft Diameter
1/2 in
Resilient Ring Diameter
2 1/4 in
Frame Size
48Y
Mounting Stud Thread Size
#8-32
Bolt Circle Diameter
5 1/8 in
Description
Room Air Conditioner Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 3, Voltage 208-230V AC, 1.09 A Full Load Amps, 48Y Frame, Output Watts 250 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Semi Enclosed Air-Over
