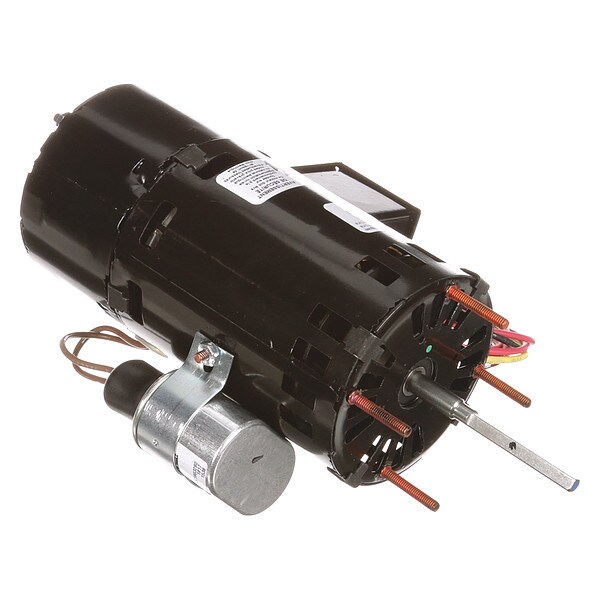

Motor, 1/15 HP, OEM Replacement Brand: Carrier/BDP Replacement For: 7162-3829

  • Mfr # D1178
  • Zoro # G4334246
product price:
$
211.99
/ea
Free Shipping & Returns

Key Features

Frame
3.3
HP
1/15 HP
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
D1178
Zoro #
G4334246
UPC #
815585027997
Country of Origin
Mexico
Frame
3.3
HP
1/15 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Extended Studs
Motor Shaft Rotation
Clockwise Shaft End
Motor Sub Application
Condenser Fan
Motor Thermal Protection
Automatic
Nameplate RPM
3450/2875 rpm
No. of Speeds
1
Number of Shafts
1
OEM Replacement Brand
Carrier/BDP
Phase
1
RPM Range
3001-3600
Voltage
208-230V
Motor Bearings
Ball
Replacement For
7162-3829
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Air Over
Full Load Amps
0.5A
Capacitor Required
Included
Standards
UL Recognized, CSA Certified
Motor Shaft Design
Double Flat
Hz
50/60 Hz
Motor Service Factor
1.00
Application
Fans and Blowers
Mounting Stud Pattern
4 in x 4 in
Voltage Compatibility
115/208-230V AC, 208-230V AC, 208-240V AC
Conduit Box Position
F1
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Usable at 208V
Motor Frame Material
Steel
Weight
5 lb
Conduit Box Location
Exterior
Number of Speeds
1
Bearing Type
Ball
Compatible Brand
Carrier/BDP
Product Type
Condenser Fan Motor
Sub Application
Condenser Fan
Insulation Class
B
Nameplate Service Factor @ 60 Hz
1
Shaft Design
Double Flat
Frame Material
Steel
Compatible Manufacturer Part Number
7162-3829
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
0.5 A
Motor Enclosure Type
Open Air Over

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/15 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 0.5 A, 3.3 Frame, OEM Replacement Brand Carrier/BDP, Replacement For 7162-3829, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over
