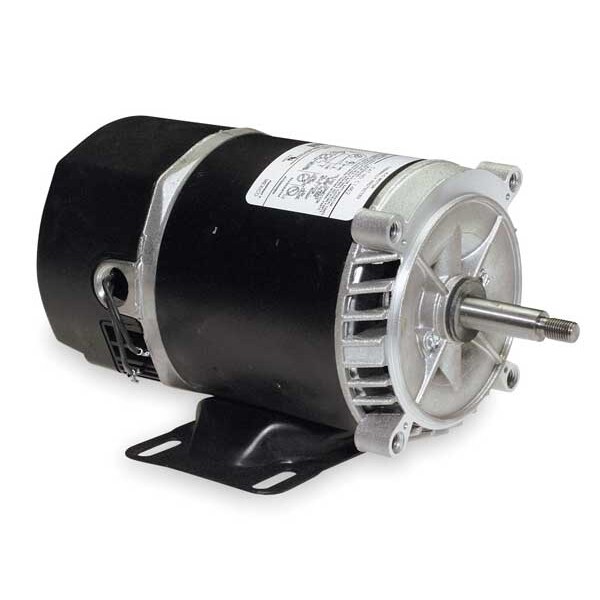

Motor, Cap St, 1 HP, 3450,115/230V, 56J, ODP

  • Mfr # 5KC39SN2890X
  • Zoro # G2553862
product price:
$
179.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Full Load Amps
14.2/7.1 A
Motor Sub Application
Jet Pump
Body Dia.
6 in
Motor Mounting Type
Face/Base
Duty
Continuous
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5KC39SN2890X
Zoro #
G2553862
UPC #
-
Country of Origin
Mexico

Dimensions

Body Dia.
6 in
Shaft Length
2 3/8 in
Overall Length
14 in
Shaft Dia.
5/8 in
Length Less Shaft
11 9/16 in
Lead Length
4 in, 6 in
Bolt Circle Dia.
4 1/2 in
Bolt Circle Diameter
4 1/2 in
Frame Size
56J
Body Diameter
6 in
Shaft Diameter
5/8 in
Wire Rope Length
14 in
Length
14 in

Details

Full Load Amps
14.2/7.1 A
Motor Sub Application
Jet Pump
Motor Mounting Type
Face/Base
Duty
Continuous
Motor Mounting Position
All Angle
Motor Enclosure Design
Open Dripproof
Motor Shaft Design
Threaded
Voltage
115V AC, 230V AC
Hz
60 Hz
HP
1
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 230V AC, 240V AC
Frame
56J
Motor Thermal Protection
Auto
RPM Range
3,001-3,600
Motor Design
Capacitor-Start
Motor Shaft Rotation
CCWSE
Nominal Efficiency
72 %
Motor Application
Pump
Motor Service Factor
1.4
Shaft Material
Stainless Steel
Standards
CSA Certified, UL Recognized
Max. Ambient Temp.
50 Degrees C
Nameplate RPM
3,450
Item
Jet Pump Motor
Phase
Single
Ins. Class
B
CC Number
CC003A
Includes
Shaft Slinger
Usable @ 200V
Not Usable at 200V
Motor Frame Material
Steel
Motor Bearings
Ball
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Conduit Box Location
Exterior
Weight
26 lb
No. of Speeds
1
Shaft Type
Threaded 7/16-20 UNF-2A
Frequency
60 Hz
Shaft Design
Threaded
Ambient Temperature - Maximum
50 Degrees C
Bearing Type
Ball
Sub Application
Jet Pump
Mounting Position
All Angle
Efficiency Rating
Standard Efficiency (IE1)
Product Type
Pump Motor
Number of Wires
8
Insulation Class
B
Full Load Current @ 60 Hz
14.2/7.1 A
Number of Speeds
1
Nameplate Service Factor @ 60 Hz
1.4
Application
Pump
Frame Material
Steel
Motor Enclosure Type
Open Drip Proof

Description

Jet Pump Motor, Body Dia. 6 in, Bolt Circle Dia. 4 1/2 in, CC Number CC003A, Conduit Box Location Exterior, Duty Cycle Continuous, Frame 56J, Hz 60 Hz, Full Load Amps 14.2/7.1, HP 1, Includes Shaft Slinger, Ins. Class B, Lead Length 4 in, 6 in, Length Less Shaft 11 9/16 in, Max. Ambient Temp. 50 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
