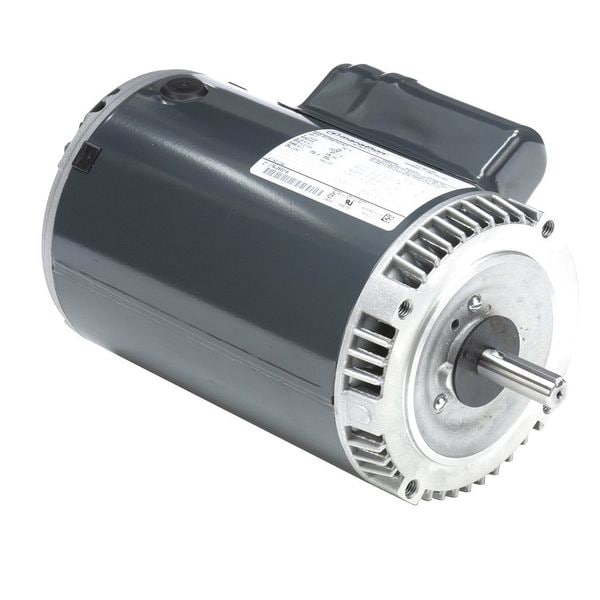

Motor, Cap St, 3 HP, 3450,115/230V, 56C, ODP

  • Mfr # 5KCR48TN2142T
  • Zoro # G2259074
product price:
$
750.99
/ea
Free Shipping & Returns

Key Features

HP
3
Full Load Amps
29.4/14.7 A
Motor Mounting Position
All Angle
Shaft Length
1 7/8 in
Motor Service Factor
1.15
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5KCR48TN2142T
Zoro #
G2259074
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
1 7/8 in
Body Dia.
6.4 in
Overall Length
12 11/16 in
Shaft Dia.
5/8 in
Bolt Circle Dia.
4 1/2 in
Length Less Shaft
10 3/4 in
Shaft Dia. (In.)
5/8
Body Diameter
6.4 in
Frame Size
56C
Bolt Circle Diameter
4 1/2 in
Shaft Diameter
5/8 in
Wire Rope Length
12 11/16 in
Length
12 11/16 in

Details

Item
Jet Pump Motor
HP
3
Full Load Amps
29.4/14.7 A
Motor Mounting Position
All Angle
Motor Service Factor
1.15
Max. Ambient Temp.
40 Degrees C
Standards
CSA Certified, UL Recognized
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 230V AC, 240V AC
Shaft Material
Carbon Steel
Motor Sub Application
Jet Pump
Phase
Single
Ins. Class
B
Motor Shaft Rotation
CW/CCW
Motor Enclosure Design
Open Dripproof
Motor Design
Capacitor-Start/Run
Hz
60 Hz
Frame
56C
Nameplate RPM
3,450
Motor Bearings
Ball
Nominal Efficiency
78.5 %
Includes
Shaft Slinger
RPM Range
3,001-3,600
Motor Shaft Design
Keyed
Motor Thermal Protection
Auto
Motor Application
Pump
Voltage
115V AC, 230V AC
Duty
Continuous
Motor Mounting Type
Face
Weight
38 lb
Usable @ 200V
Not Usable at 200V
Motor Frame Material
Steel
Duty Cycle
Continuous
Conduit Box Position
F2
Usable @ 208V
Not Usable at 208V
Conduit Box Location
Exterior
No. of Speeds
1
Number of Speeds
1
Shaft Type
Keyed
Shaft Design
Keyed
Nameplate Service Factor @ 60 Hz
1.15
Frame Material
Steel
Frequency
60 Hz
Insulation Class
B
Full Load Current @ 60 Hz
29.4/14.7 A
Mounting Position
All Angle
Motor Enclosure Type
Open Drip Proof
Application
Pump
Number of Wires
8
Efficiency Rating
Standard Efficiency (IE1)
Sub Application
Jet Pump
Bearing Type
Ball
Product Type
Pump Motor
Ambient Temperature - Maximum
40 Degrees C

Description

Jet Pump Motor, Body Dia. 6.4 in, Bolt Circle Dia. 4 1/2 in, Conduit Box Location Exterior, Conduit Box Position F2, Duty Cycle Continuous, Frame 56C, Hz 60 Hz, Full Load Amps 29.4/14.7, HP 3, Includes Shaft Slinger, Ins. Class B, Length Less Shaft 10 3/4 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start/Run, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
