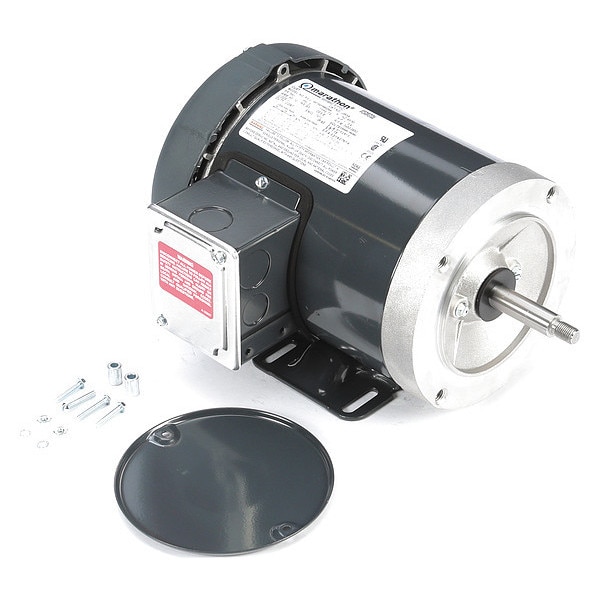

Jet Pump Motor, 1 HP, 3450 rpm, 230/460V

  • Mfr # 056T34F99029
  • Zoro # G0356157
product price:
$
437.99
/ea
Free Shipping & Returns

Key Features

Phase
Three
Motor Bearings
Ball
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Application
Pump
Motor Design
Three-Phase
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
056T34F99029
Zoro #
G0356157
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
2 5/8 in
Length Less Shaft
9 3/4 in
Shaft Dia.
5/8 in
Overall Length
12 5/16 in
Body Dia.
7.4 in
Bolt Circle Dia.
5 7/8 in
Shaft Diameter
5/8 in
Frame Size
56J
Body Diameter
7.4 in
Bolt Circle Diameter
5 7/8 in
Wire Rope Length
12 5/16 in
Length
12 5/16 in

Details

Phase
Three
Motor Bearings
Ball
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Application
Pump
Motor Design
Three-Phase
Voltage
230V AC, 460V AC
CC Number
CC003A
RPM Range
3,001-3,600
Motor Mounting Type
Face/Base
Nameplate RPM
3,450
Motor Mounting Position
Horizontal
Nominal Efficiency
85.5 %
Motor Shaft Design
Threaded
Hz
50/60 Hz
Shaft Material
Stainless Steel
Frame
56J
Ins. Class
B
Duty
Continuous
Full Load Amps
3.0/1.50 A
Motor Thermal Protection
None
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Max. Ambient Temp.
40 Degrees C
HP
1
Motor Service Factor
1.15
Motor Sub Application
Jet Pump
Item
Jet Pump Motor
Motor Shaft Rotation
CW/CCW
Standards
CE Mark, CSA Certified, UL Recognized
Green Certification or Other Recognition
NEMA Premium(R) Rated
Includes
Drip Cover
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Voltage @ 50Hz
460
Weight
24 lb
RPM @ 50Hz
3,450
Full Load Amps @ 50Hz
3.0/1.50
Usable @ 208V
Not Usable at 208V
Motor Frame Material
Steel
NEMA Design
B
Conduit Box Location
Exterior
No. of Speeds
1
Conduit Box Position
F1
Service Factor @ 50Hz
1.15
HP @ 50Hz
1
Nameplate Service Factor @ 50 Hz
1.15
NEMA Design Class
B
Nameplate RPM @ 50 Hz
3,450 RPM
Mounting Position
Horizontal
Efficiency Rating
Premium Efficiency (IE3)
Full Load Current @ 60 Hz
3.0/1.5 A
Motor Enclosure Type
Totally Enclosed Fan Cooled
Sub Application
Jet Pump
Number of Speeds
1
Nameplate Horsepower @ 50 Hz
1 hp
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1.15
Application
Pump
Frame Material
Steel
Insulation Class
B
Shaft Design
Threaded
Ambient Temperature - Maximum
40 Degrees C
Number of Wires
9
Frequency
60/50 Hz
Full Load Current @ 50 Hz
3.0/1.50 A
Product Type
Pump Motor
Nameplate Voltage @ 50 Hz
460V AC

Description

Jet Pump Motor, Body Dia. 7.4 in, Bolt Circle Dia. 5 7/8 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 56J, Hz 60/50, Full Load Amps 3.0/1.50, Full Load Amps @ 50Hz 3.0/1.50, HP 1, HP @ 50Hz 1, Includes Drip Cover, Ins. Class B, Length Less Shaft 9 3/4 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase, Motor Efficiency Group NEMA Premium Efficient
