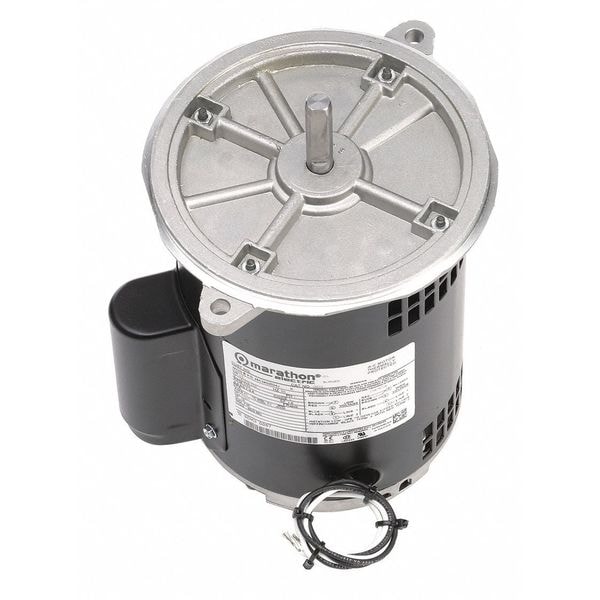

Oil Burner Motor, 1/3 hp

  • Mfr # 048C34D2024
  • Zoro # G4785328
product price:
$
217.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Motor Enclosure Design
Open Dripproof
HP
1/3
Nameplate RPM
3,450
Frame
48NZ
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
048C34D2024
Zoro #
G4785328
UPC #
-
Country of Origin
Mexico

Dimensions

Body Dia.
6 3/4 in
Shaft Length
1 3/4 in
Shaft Dia.
1/2 in
Manufacturers Warranty Length
1 yr
Overall Length
10 5/16 in
Lead Length
20 in
Length Less Shaft
8 3/4 in
Shaft Diameter
1/2 in
Frame Size
48NZ
Body Diameter
6.8 in
Wire Rope Length
10 5/16 in
Length
10 5/16 in

Details

Item
Oil Burner Motor
Motor Design
Capacitor-Start
Motor Enclosure Design
Open Dripproof
HP
1/3
Nameplate RPM
3,450
Frame
48NZ
Voltage
115V AC, 208V AC to 230V AC
Motor Mounting Type
Face
Motor Shaft Rotation
CW/CCW
Motor Application
HVAC/R
Ambient Temperature
40 Degrees C
Phase
Single
RPM Range
3,001-3,600
Hz
60 Hz
Motor Bearings
Ball
Motor Flange Type
Non-Ventilated
Motor Service Factor
1
Ins. Class
B
Standards
CE Listed, CSA Certified, UL Recognized
Motor Sub Application
Oil Burner
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 208V AC to 230V AC
Max. Ambient Temp.
40 Degrees C
Motor Thermal Protection
Manual
Motor Shaft Design
Flat
Motor Flange Material
Aluminum
Full Load Amps
5.6/2.7-2.8 A
Features
NEMA N or M Flange Direct, Two Bolt
Motor Frame Material
Steel
Weight
14 lb
No. of Speeds
1
Conduit Box Location
Exterior
Nominal Efficiency
64 %
Conduit Box Position
F1
Motor Mounting Position
Horizontal or Vertical Shaft Up
Capacitor Required
Capacitor Included
Duty Cycle
Continuous
Output Watts
250 W
Removable Base
No
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Usable at 208V
Drive Type
Direct Drive
Manufacturers Warranty
1 yr
Number of Speeds
1
Sub Application
Oil Burner
Mounting Position
Horizontal
Application
Oil Burner
Product Type
Oil Burner Motor
Ambient Temperature - Maximum
40 Degrees C
Duty
Continuous
Insulation Class
B
Nameplate Service Factor @ 60 Hz
1
Flange Type
Non-Ventilated
Shaft Design
Flat
Wattage
250 W
Frequency
60 Hz
Motor Enclosure Type
Open Drip Proof
Frame Material
Steel
Bearing Type
Ball
Full Load Current @ 60 Hz
5.6/2.7-2.8 A

Description

HVAC Motor, Single Phase, Motor Design Capacitor-Start, 1/3 HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 115/208-230V AC, 5.6/2.7-2.8 A Full Load Amps, 48NZ Frame, Output Watts 250 W, 60 Hz Hz, Usable @ 208V Yes, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Face, Motor Frame Material Steel
