  11. Saw Motor, 3 HP, 3450 RPM, 230V

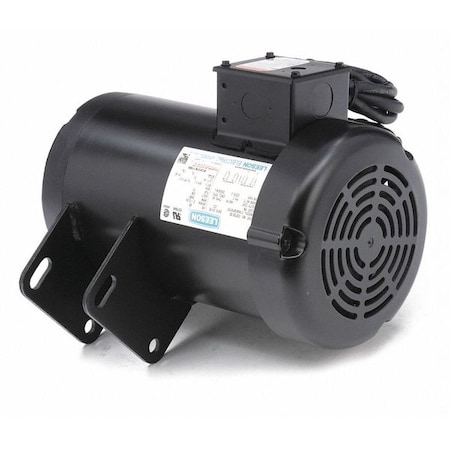

Leeson Saw Motor, 3 HP, 3450 RPM, 230V 120728.00 - main

Saw Motor, 3 HP, 3450 RPM, 230V

  • Mfr # 120728.00

  • Zoro # G0454203

product price: $909.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Motor Enclosure Design
Totally Enclosed Fan Cooled
HP
3 hp
Nameplate RPM
3,450 RPM
Frame
145Y
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
120728.00
Zoro #
G0454203
UPC #
691720015889
Country of Origin
United States

Dimensions

Shaft Dia.
3/4 in
Length Less Shaft
11 1/8 in
Shaft Length
1 3/4 in
Overall Length
12 7/8 in
Cord Length
4 1/2 ft

Details

Item
Power Tool Motor
Motor Design
Capacitor-Start
Motor Enclosure Design
Totally Enclosed Fan Cooled
HP
3 hp
Nameplate RPM
3,450 RPM
Frame
145Y
Voltage
230V AC
Full Load Amps
13.0 A
Motor Mounting Type
C-Face
RPM Range
3,001-3,600
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Includes
54 in Long Cord
Motor Bearings
Ball
Standards
CSA Certified, UL Recocgnized
Motor Shaft Rotation
CWSE
Motor Application
Power Tools
Phase
Single
Hz
60 Hz
Ins. Class
F
Ambient Temperature
40 Degrees C
Motor Service Factor
1
Motor Thermal Protection
None
Nominal Efficiency
81.5 %
Duty Cycle
Continuous
Max. Ambient Temp.
40 Degrees C
Weight
55 lb
Motor Frame Material
Steel
Motor Shaft Design
Keyed
Motor Mounting Position
Horizontal
Conduit Box Position
F1
Number of Shafts
1
Conduit Box Location
Exterior
Extended Thru-Bolts
No
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
No. of Speeds
1
Motor Sub Application
Table Saw
On/Off Switch
On/Off Switch Not Included

Description

If you're looking for a high-quality table saw motor, the Leeson 120728.00 is your solution. This 3 HP motor will ensure that your power tools continue to run smoothly and efficiently. The Leeson 120728.00 Table Saw Motor has a 3/4 in. diameter shaft and runs at 3450 RPMs. It has a totally enclosed fan cooled enclosure, making it ideal for outdoor applications as well as indoors. Designed with a capacitor start design, this table saw motor comes complete with a nameplate speed of 3,450 RPMs and a horsepower rating of 3 HPs. The voltage required is 230V AC and the full load amps are 13 amps. When it comes to finding the right power tool motors, the Leeson 120728.00 is what you need to make sure your equipment continues running smoothly.
